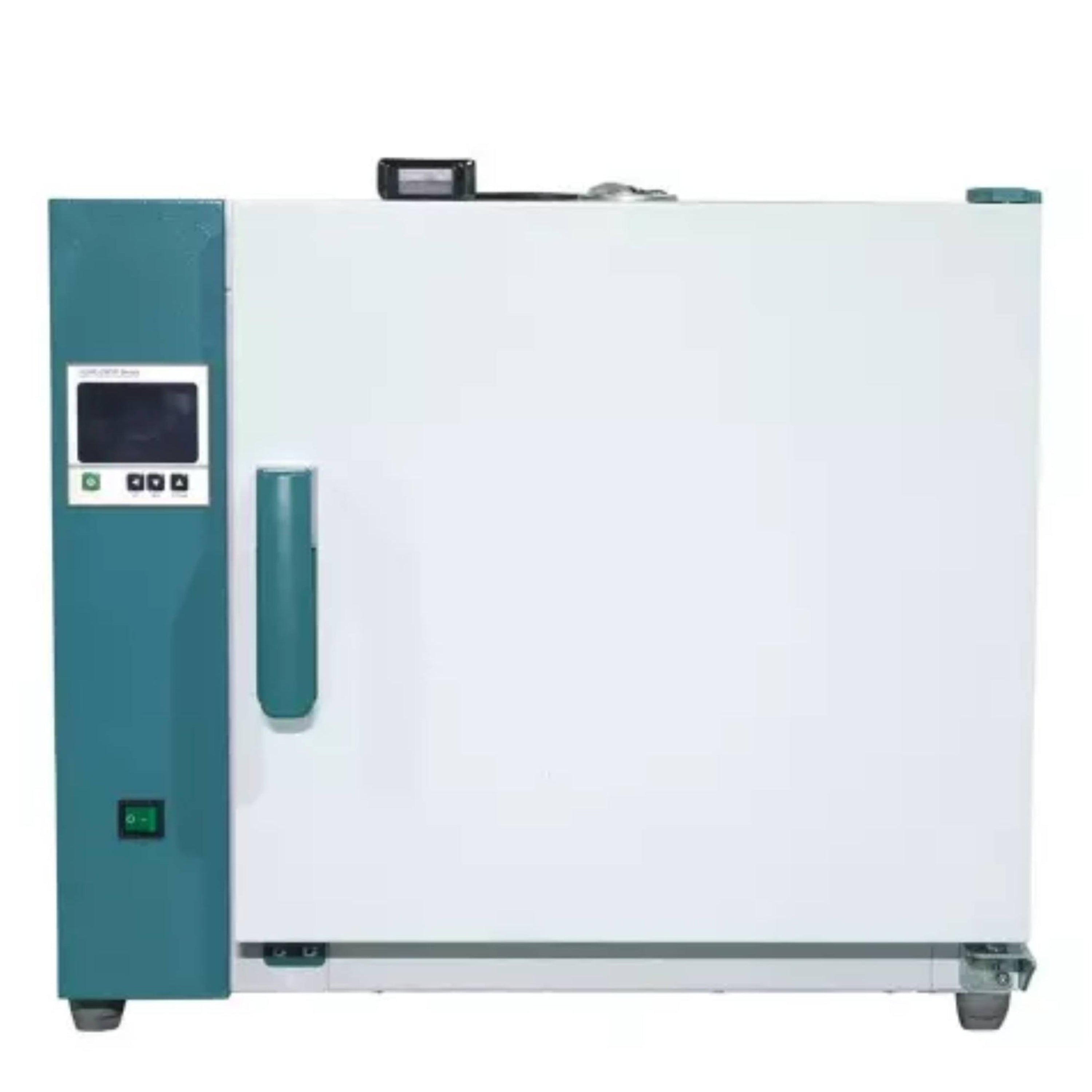

MSE PRO Anti-corrosive Drying Oven Horizontal type – 450×350×450mm, 220V, 71L
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ Anti-corrosive Drying Oven Horizontal type – 450×350×450mm, 220V, 71L
Features:

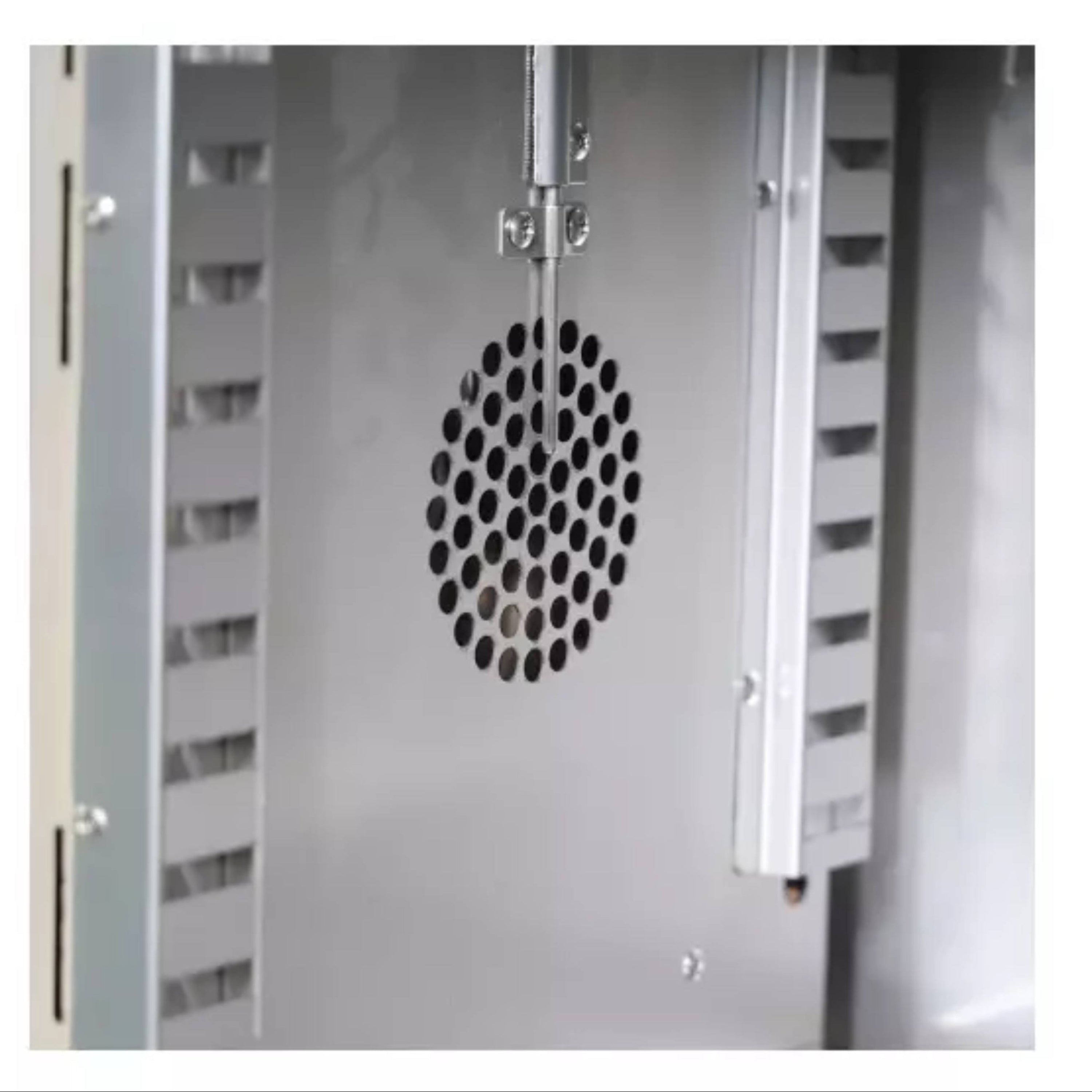

- Horizontal air type, high space utilization and good temperature uniformity.
- SUS304 seal motor, Forced fan cooling intake structure, the maximum working temperature <50℃, so that the fan can run for a long time.
- SUS316 inner chamber and shelves, ensure the Anti-corrosion.
- New Anti-hot handle.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Climate Chamber with Illuminations. Please contact us for more information.
Specifications:
|
Model |
MA0067450 |
|
|
Circulation Mode |
Forced Convection |
|
|
Function |
Used Temp. Range |
RT+10-250℃ |
|
Temp. Resolution |
0.1℃ |
|
|
Temp. Fluctuation |
±1℃ |
|
|
Temp. Uniformity |
± 2.5% |
|
|
Structure |
Inner Chamber |
SUS316 stainless steel |
|
Outer Shell |
Cold rolling steel electrostatic spraying exterior |
|
|
Insulation Layer |
High-quality rock wool board(with CE) |
|
|
Heater |
Stainless steel electric heating tube |
|
|
Controller |
Power Rating |
1.6kW |
|
Exhaust Hole |
Exhaust Hole 4 35mm top(with function of test hole) |
|
|
Temp. Control Mode |
Two Temperature Section PID Intelligent |
|
|
Temp. Setting Mode |
Touch button setting |
|
|
Tamp. Display Mode |
Measuring Temperature: Display on the upper row; Setting Temperature: Display on the lower row (LED) |
|
|
Timer |
0-9999min(with timing wait function) |
|
|
Operation Function |
Fixed Temperature Operation, Timing Function, Auto Stop |
|
|
Additional function |
Sensor Deviation Correction, Temperature Overshoot Self-tuning. Internal Parameter Locking. Power-Off Parameter Memory |
|
|
Sensor |
pt100 |
|
|
Safety Device |
Over Temperature Sound-light Alarm |
|
|
Specification |
Inner Chamber Size(W"L"H)(mm) |
450*350*450 |
|
Exterior Size(W"L"H)(mm) |
752*472*687 |
|
|
Packing Size(W"L"H)(mm) |
845*605*850 |
|
|
Volume |
71L |
|
|
Max Shelf Number |
13 |
|
|
Load Per Rack |
15kg |
|
|
Shelf Space |
25mm |
|
|
Current Rating(50/6OHZ) |
AC220V/7.3A |
|
|
NWIGW(KG) |
45/50 |
|
|
Accessory |
Shelf |
2 |
|
Shell Frame |
4 |
|
|
Optional Accessories |
Shelves, Program Controller |
|
