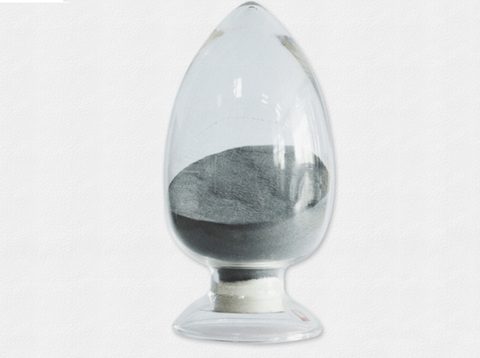

MSE PRO AlSi10Mg Aluminum Based Metal Powder for Additive Manufacturing (3D Printing)
Product details:
AlSi10Mg alloy is a typical aluminum based alloy that offers good strength, hardness and dynamic properties, and is therefore used for parts subject to high mechanical loads. Parts made with Aluminum AlSi10Mg alloy are ideal for applications which require a combination of good thermal properties and low weight. They can be machined, spark-eroded, welded, micro shot-peened, polished and coated if required.
AlSi10Mg metal powder for additive manufacturing (3D printing) is an excellent choice for the 3D printing of lightweight parts with good thermal properties, also as a substitution of casted parts.
SKU#: MP0201 (0-45 um size), MP0203 (15-45 um size), MP0204 (45-105um size), MP0205 (75-180um size)
Chemical Composition:
|
Chemical Composition (wt%) |
||||||||||
|
Item |
Fe |
Zr |
Mn |
Si |
Ni |
Cr |
Zn |
Sn |
Pb |
Al |
|
AlSi10Mg |
≤0.55 |
- |
≤0.45 |
9.0~11.0 |
≤0.05 |
- |
≤0.1 |
≤0.05 |
≤0.05 |
Bal. |
|
Mg |
Cu |
Ti |
|
|
|
|
|
|
|
|
|
0.2~0.45 |
≤0.1 |
≤0.15 |
|
|
|
|
|
|
|
|
Oxygen≤800 ppm; Nitrogen≤500 ppm
Particle Size Options (This size is D50):
<45μm, ~45μm, 15-45μm, 45-105μm, 75-180μm. (A variety of particle sizes of metal powders can be customized upon request)
Applications:
AlSi10Mg metal powder can be used in laser/electron beam additive manufacturing (SLM/EBM), powder metallurgy (PM), spraying and other processes. Aluminum-based metal powder is widely used in aerospace parts, automotive parts, profile surface spraying, and powder metallurgy.
Applicable Equipment:
AlSi10Mg metal powder can be used in various types of metal 3D printers, including Renishaw from the UK, EOS (EOSINT M series) from Germany, Concept Laser, 3D systems from the United States and many other laser melting equipment.
Minimum Order Quantity:
1kg
Note:
The metal powder price varies due to the particle size range and the raw material price.
