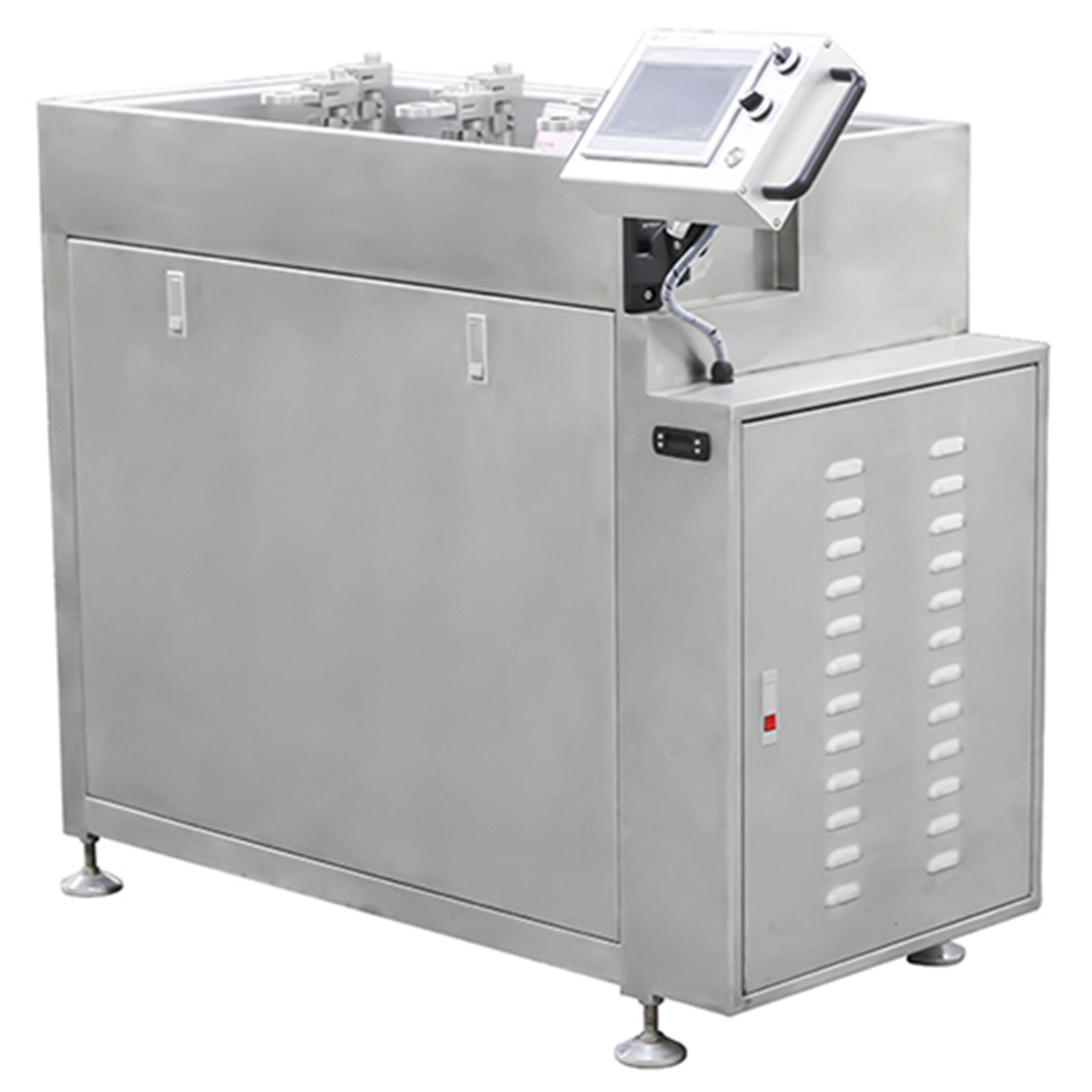

MSE PRO Advanced 5-Station End-Quench (Jominy) Testing System with PLC Control
Introduction
The MSE PRO Advanced 5-Station End-Quench (Jominy) Testing System is a high-precision solution for evaluating the hardenability of steel materials under controlled quenching conditions. Designed in accordance with international standards, this system enables accurate and repeatable Jominy testing for carbon steels, alloy steels, tool steels, and bearing steels.
Equipped with PLC-based automation and a touchscreen interface, the system provides reliable process control, stable cooling conditions, and efficient multi-sample testing, making it ideal for research laboratories and industrial quality control environments.
Key Features
- 5-Station High-Efficiency Design – Simultaneously test up to five samples for improved throughput
- PLC Full Process Control – Ensures precise, stable, and repeatable testing conditions
- Touchscreen Operation – Intuitive interface for parameter setup and monitoring
- Automatic & Manual Spray Modes – High-sensitivity photoelectric sensor enables automatic water control
- Independent Adjustment per Station – Each station allows precise control of nozzle height and alignment
- Precision Positioning System – Adjustable X/Y/Z positioning ensures accurate sample-to-nozzle alignment
- Stable Temperature Control – Maintains cooling water temperature at 20 ± 3 °C under ambient conditions (0–50°C)
- High Flow Rate Cooling System – Provides consistent and uniform quenching conditions
- Water Level Alarm System – Alerts users when cooling water level is insufficient
- Auxiliary Heating System – Integrated 1.0 kW heater supports operation in low ambient temperatures
- Durable Stainless Steel Construction – 304 stainless steel structure for corrosion resistance and longevity
Specification
| Number of Stations | 5 |
| Control System | PLC + Touchscreen |
| Water Pump Quantity | 5 |
| Water Jet Diameter | 12.5 mm |
| Water Jet Height | 65 ± 5 mm (independently adjustable) |
| Nozzle Distance to Sample | 12.5 ± 0.5 mm (adjustable) |
| Sample Holder Inner Diameter | 26 mm |
| Water Pump Flow Rate | 200 L/min |
| Cooling Water Temperature | 20 ± 3 °C |
| Spray Time Range | 0 – 99 min (programmable) |
| Compressor Capacity | 1.5 HP |
| Auxiliary Heating Power | 1.0 kW |
| Power Supply | AC 110V, 60Hz |
| Machine Dimensions (L × W × H) | 1472 × 710 × 1030 mm |
| Weight | 100 kg |
MSE supplies offers various metallographic equipment, please contact us for more information.
