MSE PRO Acidic Atmosphere with SO2 Test Machine
SKU: MA0064367

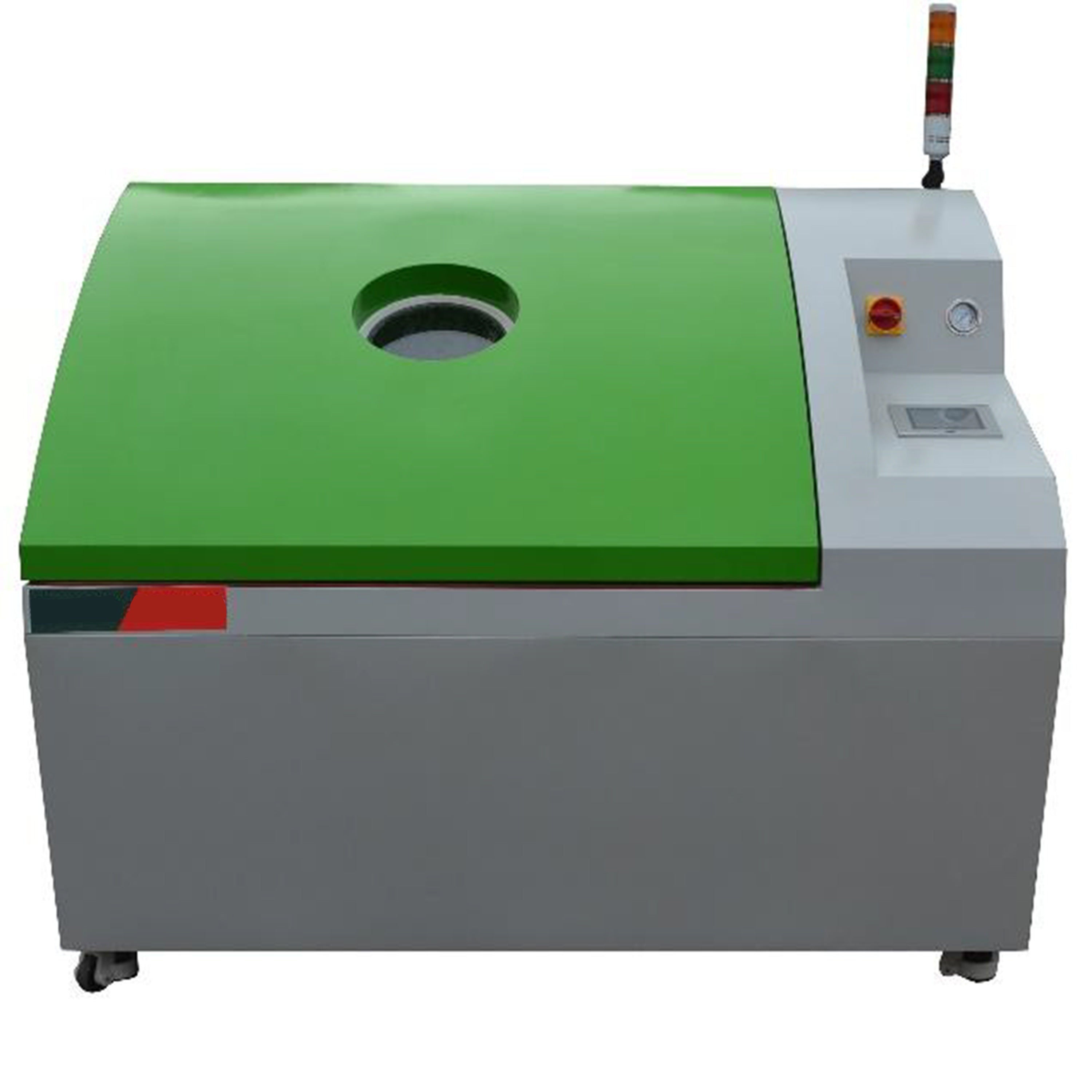

MSE PRO™ Acidic Atmosphere with SO2 Test Machine
MSE PRO™ Acidic Atmosphere with SO2 Test Machine is primarily designed to evaluate the acid resistance of materials and surface coatings on equipment. It is suitable for assessing equipment stored or used in acidic environments, such as industrial zones or near exhaust systems of combustion devices. The apparatus also enables corrosion testing in controlled laboratory conditions, providing quality assessment methods for evaluating whether metal materials possess anti-corrosion protection. For rapid analysis of discontinuities, pores, and damage in organic/inorganic coatings, it facilitates corrosion resistance testing. Additionally, it supports quality control by allowing comparison between samples coated with identical materials. The salt spray test is particularly effective in detecting discontinuities like micro-pores and other defects in certain metals, organic coatings, anodized surfaces, and conversion coatings. However, this equipment is not suitable for evaluating hydrogen
sulfide effects.
Specifications:
| Product name | Acidic atmosphere with SO2 test machine | |
| Product model | MA0064367 | |
| Sample limitations | This test equipment is prohibited: Test or storage of samples of flammable, explosive and volatile substances Test or storage of corrosive material samples Test or storage of biological specimens Test or storage of samples with strong electromagnetic emission sources Test and storage of radioactive material samples Test and storage of toxic substance samples Test and storage of samples that may produce highly toxic substances during testing or storage |
|
| Volume, size and weight | ||
| Inner capacity | The volume of 450 L ,it does not include the volume of the top inclined roof |
|
| Chamber size (mm) | 1000×650×700 W×H×D (Excluding the height of the sloping top) | |
| Carton size(mm) | Approximately 1800×1400×1000 W × H × D Note: The size of the outer box does not include the exhaust pipe beyond 100mm on the back of the equipment, the size of the exhaust filter and the size of the external salt water |
|
| Salt tank size (mm) | Φ 600×H700, volume 160L | |
| Size of the air filter (mm) | 700×1200×1000 W×H×D | |
| Net weight | About 200kg | |
| Machine power and power supply requirements | ||
| Power source | AC (220±10) V 50Hz, single phase three wire | |
| Power supply conditions | The grounding resistance of the protective ground wire is less than 4Ω; TN-S mode or TT mode is used Users are required to install air or power switches with corresponding capacity for the equipment at the installation site, and the switch must be used independently for the equipment (do not use knife switches or power sockets). |
|
| Power capacity | AC220V 50HZ with a total power of 2.2kW Maximum current: 10A (It is recommended that the switch capacity should not be less than 16 A, and the distance between the switch and the equipment should be less than 2.5 meters) |
|
| Performance index | ||
| Test equipment function | Salt spray test mode, salt spray + SO2 test mode, switchable, can be combined in a program for testing or conducted as a separate functional test. |
|
| Salt spray test function&specification |
Temperature range | Environmental temperature～55℃,adjustable |
| Salt spray setting volume |
1～2ml/(h·80cm2)adjustable,( at least collect for 16 hours and get its average value) |
|
| Salt spray setting volume uniformity |
1.5±0.5ml/(h·80cm2)(at least collect for 16 hours); | |
| Spray method | It can perform continuous/intermittent program settings and has a quantitative control function. |
|
| Spray system | A filter is installed in the salt water tank, which can be cleaned and reused; each nozzle can be adjusted to a specific angle, is detachable and washable. |
|
| Brine concentration |
5%±1% or specified value | |
| salt PH value | Neutral: 6.5～7.2;acidity:3.0～3.2 | |
| Saturator temperature range |
Environmental temperature～70℃,adjustable | |
| Salt spray pressure |
70～170Kpa | |
