MSE PRO 91L Vacuum Oven Standard Type
SKU: MA4205

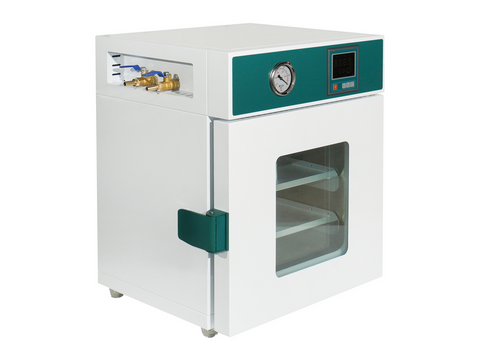

MSE PRO™ 91L Vacuum Oven Standard Type
The MSE PRO Vacuum Drying Oven Standard Type is specifically designed for heat-sensitive, easily decomposed, and oxidizable materials. By operating under reduced pressure and incorporating multi-sided heating, it enhances drying efficiency and product safety. Ideal for laboratories and industrial use, this unit ensures a tightly sealed environment and convenient operation.
- Four-Sided Heating System: Optimizes temperature conduction through shelves, improving heating efficiency and uniformity.
- High-Seal Inflatable Port: Equipped with a once-forming thermostable silica gel sealant strip for superior airtightness.
- Double-Layer Glass Window: Inner layer is toughened glass and the outer layer is a resin protective plate for enhanced safety and visibility.
- Secure Fastening Handle: Designed for easy and safe opening and closing, ensuring operational convenience.
-
Optimized for Vacuum Operation: Ideal for precise drying applications where oxidation and contamination must be minimized.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Vacuum Drying Ovens. Please contact us for more information.
Specifications:
| SKU# | MA4205 | |
| Heating mode | Four walls heat conduction and decompression | |
| Function | Temp. Range | RT+10-250℃ |
| Useful vacuum degree Range | <133Pa | |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. motion | ±1℃ | |
| Heating-up time | 120min | |
| Structure | Inner Chamber | High quality stainless steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality aluminum silicate cotton (with CE certification) | |
| Heater | Stainless steel electric heat tube | |
| Observation window | Bullet proof tempered glass | |
| Vacuum meter | Pointer type, accuracy class 2.5 | |
| Nozzle diameter | 10mm | |
| Power rating | 2.0kW | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | Measuring temperature: display on the four digital tubes upper row; setting temperature: display on the lower row | |
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop | |
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |
| Sensor | PT100 | |
| Safety device | Over temperature sound-light alarm | |
| Specification | Inner Chamber size (W*L*H) | 450*450*450 mm |
| Exterior size (W*L*H) | 640*590*780 mm | |
| Volume | 91L | |
| Standard Shelf Number | 7 | |
| Load per rack | 15kg | |
| Shelf space | 50mm | |
| Current rating (50/60HZ) | AC220V/9.1A | |
| Net Weight | 82 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories | Silicone connecting tube, vacuum pump filter, vacuum pump | |
