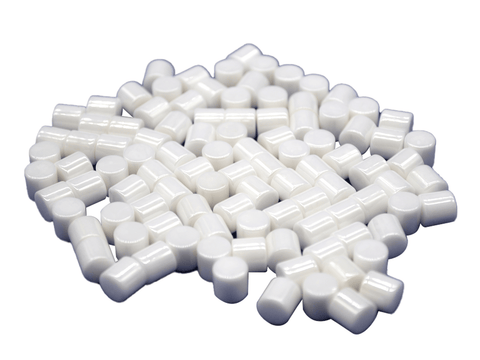

MSE PRO 7.5 mm Cylindrical Premium Yttria Stabilized Zirconia YSZ Milling Media, 1 kg - MSE Supplies LLC

MSE PRO 7.5 mm Cylindrical Premium Yttria Stabilized Zirconia YSZ Milling Media, 1 kg

SKU: BA0121

  • $ 9495
  • Save $ 1200


Description for Yttrium Stabilized Zirconium Oxide Grinding/Milling Media

Size: 7.5 mm x 7.5 mm cylindrical shape (cylinder shape)

Composition: 5.25wt%, (3 mol%) YSZ

Product Number: BA0121

We sell in tons, please contact us for high volume purchase.

For zirconia micro milling media with less than 2mm diameter YSZ balls, visit the zirconia micro milling media webpage.

Y2O3 Stabilized Zirconia Milling Media

Specifications for 5.25 wt%, Y2O3 Stabilized Zirconia Milling Media

Items

Unit

Specification

Composition

wt%

94.7% ZrO2
5.2% Y2O3

Specific Density

g/cm3

~ 6.1

Hardness Mohs >9.0
Elastic modulus GPa 200
Thermal Conductivity W/m.K 3
Crushing Load KN ~ 20
Fracture Toughness MPa*m1/2 9
Grain size um 0.5
Thermal Expansion
Coefficient (20-400 °C)
10x10 -6 / °C 9.6



Material Specification of Premium Yttria Stabilized Zirconia Milling Media

Ingredient

Composition

ZrO2 (+ HfO2), wt%,

94.7

Y2O3, wt%,

5.2+/-0.25

Al2O3, wt%,

0.25

SiO2, wt%,

0.009

Fe2O3, wt%,

0.002



Features Cylindrical Premium Yttria Stabilized Zirconia Milling Media

  1. Highly cost-effective, low wear and long lifetime: YSZ milling/grinding material is the most durable and efficient media for ball milling of ceramic materials. Due to its ultra-low wear loss, its operational cost can be lower.
  2. High specific gravity, high efficiency, which saves processing time.
  3. Highly resistant to acid and solvents.
  4. Highly polished, smooth, easy to clean, low abrasion to the equipment.
  5. High mechanical strength, good toughness, impact resistance, no broken beads
  6. Mainly used for various ball milling machines, including roller jar mills and planetary ball mills.
  7. Its virtually contamination-free character makes it an ideal solution for a variety of applications that demand minimal contamination, including, but not limited to, nano materials, pharmaceutical, food, chemical, battery, ink, toner, dielectric, solar cell, semiconductor, etc.
