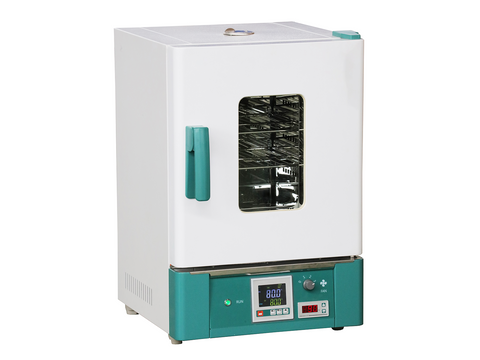

MSE PRO 65L Forced Air Oven LCD Controller, Digital Independent Temp. Limiter
SKU: MA4125
MSE PRO™ 65L Forced Air Oven LCD Controller, Digital Independent Temp. Limiter
The MSE PRO Forced Air Drying Oven enhances precision and adaptability for laboratory and industrial processes. Built with upgraded components, it offers advanced control, safety, and durability. Ideal for demanding environments, this series supports a wide range of applications with its refined features and construction.
- LCD Temperature Controller: Offers accurate and easy-to-read temperature regulation.
- 4-Speed Adjustable Fan: Provides customizable airflow to meet various processing needs.
- Over-Temperature Protection: Built-in safety system prevents overheating for user and equipment safety.
- Digital Independent Temperature Limiter: Ensures extra temperature accuracy and protection with high precision control.
- Durable Stainless Steel Body: Constructed from SUS304 stainless steel for corrosion resistance and long-lasting use.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Forced Air Drying Ovens. Please contact us for more information.
Specifications:
| SKU# | MA4125 | |
| Cycle Mode | Forced convection | |
| Function | Temp. Range | RT+10-300℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±1℃ | |
| Temp. Uniformity | ±2.5% | |
| Structure | Inner Chamber | Mirror Stainless Steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality rock wool board(with CE) | |
| Heater | Stainless steel heater | |
| Power rating | 1.6kW | |
| Exhaust hole | Φ35mmtop(with function of test hole) | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | Measuring temperature display on upper LCD screen， setting temperature display on the lower row | |
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop. | |
| Additional function | High precision digital independent temperature limiter, 4 grade 3speed adjustable-speed fan (230 and 625model BE without fan speed adjustor),sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory |
|
| Sensor | PT100 | |
| Specification | Inner Chamber size(W*L*H) | 400*360*450 mm |
| Exterior size (W*L*H) | 540*550*830 mm | |
| Volume | 65L | |
| Shelf number | 8 | |
| Load per rack | 15 kg | |
| Shelf space | 40 mm | |
| Power rating (50/60HZ) | AC220V/7.2A | |
| Net Weight | 44 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories | Spare Shelf, RS485 Interface, Printer, Program controller, U-disk storage; 3.5-inch color touch screen temperature controller | |
