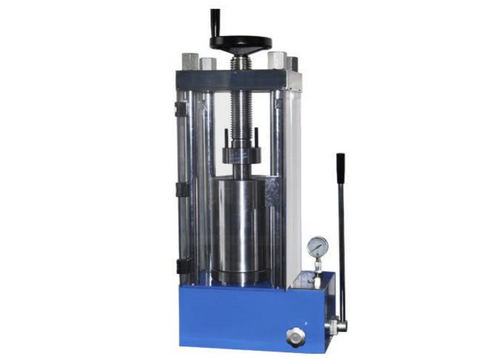

MSE PRO 60T Manual Cold Isostatic Press (CIP) with 50mm ID Vessel and Safety Shield

  • $ 12,00995
  • Save $ 1,44200


MSE PRO™ 60T Manual Cold Isostatic Press (CIP) with 50mm ID Vessel and Safety Shield

Cold isostatic pressing (CIP) is a method of compacting powdered materials into a solid homogeneous mass before machining or sintering. Cold isostatic pressing, in which the powder is subjected to equal pressure from all directions, followed by machining, is also in general use for wear and metal forming tools. It is commonly used for parts that are too large to be pressed in uniaxial presses and that do not require high precision in the sintered state. Sometimes referred to as hydrostatic pressing, it is a very simple process capable of producing high-integrity billets or preforms that exhibit little distortion or cracking when fired.

At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing.

If you need other maximum pressure or customized design, please contact MSE Supplies.

If you use this press inside of glove box, please check the O-ring seal periodically to avoid oil leak.

Specification:
    Product SKU # PR0343
    Pressure Range

    0-60 Tons (0~34 MPa)

    Digital pressure gauge is available with additional cost

    Sample Stage Diameter 150 mm
    Isostatic Pressure 0-300 Mpa
    Bottom Cylinder Traveling Distance 50 mm
    Sample Vessel ID 50 mm
    Max. Sample Size 50 mm Dia. x 150 mm
    Operation Temperature 10 - 40°C
    Safety Shield Material Polycarbonate
    Dimensions (LxWxH)
    405 x 470 x 720 mm
    Net Weight 180 kg
    Warranty Limited one year warranty, not responsible for the damage caused by improper use
    Note Please clean the press after each use to ensure the best performance and longer life time

    References:

    1. Cold Isostatic Pressing, K.J. Morris, in Concise Encyclopedia of Advanced Ceramic Materials, 1991

    2. Production of Refractory Metal Powders, Oleg D. Neikov, ... Nikolay A. Yefimov, in Handbook of Non-Ferrous Metal Powders (Second Edition), 2019
