50g Super P Conductive Carbon Black For Lithium Ion Battery,  MSE Supplies

MSE PRO 50g Super P Conductive Carbon Black For Lithium Ion Battery

  • $ 8950

Qty (Each) Price (Each)
1 - 4 $ 89.50
5 - 9 $ 76.08
10 - 19 $ 67.13
20 - 99 $ 58.18
100 - 100+ $ 44.75

Product Descriptions:

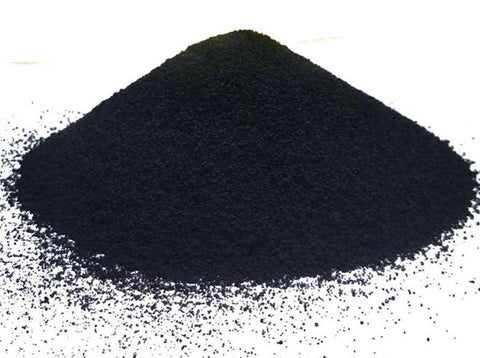

The TIMCAL Super P Conductive Carbon Black has high purity and structure stability with a moderate surface area suitable in numerous battery applications as a conductive additive.

SKU#: BR0121
Package: 50 grams per bottle (Please contact us for volume discount if you need to order a higher quantity. Bulk order will be in bulk packaging. )
CAS Number: 1333-86-4

Product Benefits:

  • Increased battery safety
  • Fully compatible with most electrolyte systems
  • No dispersing agent is needed
  • Very high loading is possible
  • Cost savings on NMP and faster drying time
  • High energy density
  • Improved power density
  • Cost reduction thanks to lower dosage needed
  • Improved “flexibility” of the electrode

Product Analysis

    Volatile content

    0.15%

    Toluene extract

    0.1%

    Ash content (600C)

    0.05%

    Grit content >45 microns

    5 ppm

    Grit content >20 microns

    25 ppm

    BET specific surface area

    62 m2/g

    Adsorption stiffness value

    32 ml/5g

    Moisture

    0.1%

    Density

    1.60 g/cm3

    Sulfur content

    0.02%

    pH

    10

    Iron

    5ppm

    Nickel

    1ppm

    Vanadium

    1ppm

    Package

    Sealed bottle

     Note: Please bake the SUPER P carbon black powder in an oven at 150 ~ 200°C to remove absorbed moisture before using it to make slurry for coating.

    References:

    Electrochemical properties of Super P carbon black as an anode active material for lithium-ion batteries, RM. Gnanamuthu, Chang WooLee, Materials Chemistry and Physics, Volume 130, Issue 3, 1 November 2011, Pages 831-834

    A comparative investigation of carbon black (Super-P) and vapor-grown carbon fibers (VGCFs) as conductive additives for lithium-ion battery cathodes, Inseong Cho, Jaecheol Choi, Kyuman Kim, Myung-Hyun Ryou and Yong Min Lee, RSC Adv., 2015,5, 95073-95078
