500g Styrene-Butadiene Rubber (SBR) Binder for Li-ion Battery Anode - MSE Supplies LLC

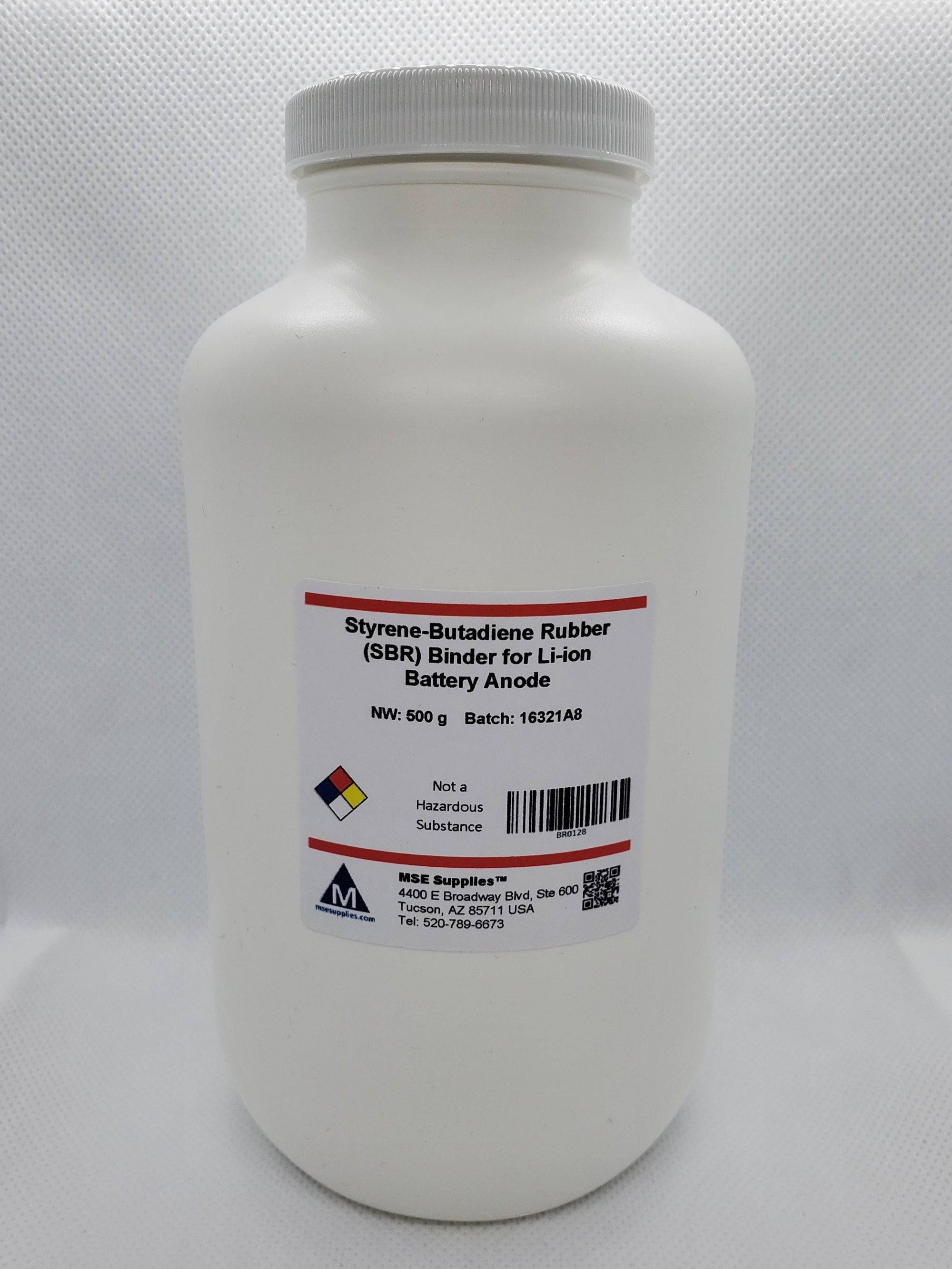

MSE PRO 500g Styrene-Butadiene Rubber (SBR) Binder for Li-ion Battery Anode

  • $ 27500


Product Details:

Styrene-Butadiene Rubber (SBR) is widely used as binder for battery anode preparation. Compared with PVDF, it has higher flexibility, stronger binding force, and higher heat resistance.  It is soluble in environmental friendly solvents such as water and ethylacetate which reduces the use of toxic N-Methyl-2-Pyrrolidone (NMP). Moreover, when used with Carboxymethyl cellulose (CMC), it is a trending binder for silicon based electrode which improves the cycling performance.

This product is a water based binder which is mainly used to prepare anode electrode for Lithium-ion batteries with strong adhesion and high ageing-retardant.

SKU#: BR0128

Packing: 500g/bottle

 Specifications:

Technical parameter

Value

Appearance

Milky white liquid with light blue gloss

Solid loading

50 +/- 2%

Styrene

23-25%

Butadiene

70-72%

Carboxyl

5%

pH 6-7

Viscosity (NDJ-5S, 25°C)

100~350 mPa. S

Relative Density (water =1)

1.52

Relative Vapor Density (air =1)

1.23

Storage 0~38°C



References:

1. Study of styrene butadiene rubber and sodium methyl cellulose as binder
for negative electrodes in lithium-ion batteries, J. Power Sources 161 (2006) 617–622

2. Water soluble styrene butadiene rubber and sodium carboxyl methyl cellulose binder for ZnFe2O4 anode electrodes in lithium ion batteries, J. Power Sources 285 (2015) 227-234
