5 pcs of CR2016 Coin Cell Case With One Side Kapton Window For In-situ XRD Measurement,  MSE Supplies

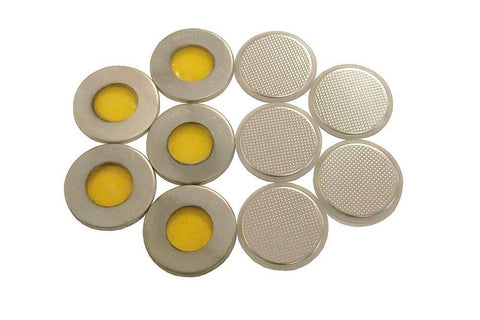

MSE PRO 5 pcs of CR2016 Coin Cell Case With One Side Kapton Window For In-situ XRD Measurement

  • $ 11900


Product Details:

CR2016 Coin Cell Battery Case with one side Kapton Window and Polypropylene Sealing O-ring. The Kapton window is designed for in-situ XRD measurement of battery material phase variations during charge and discharge

Specifications

Product SKU# BR0110
Pack Size 5 pcs per pack

Material

Stainless Steel 304 case with one side Kapton window and Polypropylene Sealing O-ring

Overall Dimensions
(Dia x Height)

CR2016 20mm x 1.6mm

Case Dimension

Cathode: O.D. = 20.0mm, I.D. = 19.4mm
Anode: O.D. = 19.3mm, I.D. = 16.9mm

Kapton Window Dia

10 mm

Kapton Window thickness

0.18 mm
