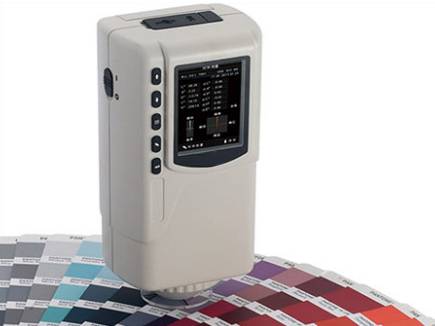

MSE PRO Φ4mm Measuring Aperture Colorimeter
SKU: BB2201
MSE PRO™ Φ4mm Measuring Aperture Colorimeter
The MSE PRO Colorimeter Portable Spectrophotometer is an advanced, handheld device designed for precise color and material analysis. It features built-in white plate parameters, eliminating the need for frequent calibration. The device supports double locating (illuminating and precise cross-locating) and offers switchable dual measurement end faces, catering to both large and small surface areas. With an innovative integrating sphere optical path design, it minimizes stray light for superior accuracy. Equipped with a rechargeable Li-ion battery and CQCS3 software compatibility, it enables seamless PC connectivity for extended functionality.
- No Frequent Calibration Needed – Built-in white plate parameters remove the need for repeated calibration.
- Enhanced Locating Accuracy – Double locating system (illuminating & cross locating) ensures precise measurements.
- Versatile Measurement Surfaces – Switchable dual end faces accommodate both large stable and small concave-convex areas.
- Superior Optical Precision – New integrating sphere optical path design eliminates stray light for enhanced measurement accuracy.
- Portable & PC-Compatible – Rechargeable Li-ion battery and CQCS3 software connectivity make it a convenient and powerful tool.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Colorimeters. Please contact us for more information.
Specifications:
| SKU# | BB2201 |
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ4mm |
| Detector | Silicon photoelectric diode |
| Color Space | CIEL*a*b*C*h* CIEL'a*b*CIEXYZ |
| Color Difference Formula | ∆E*ab ∆L*a*b*∆E*C*h |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Display | TFT LCD |
| Errors Between Each Equipment | ≤0.80∆E*ab |
| Storage | 100pcs standards, 20000pcs samples |
| Repeatability | Standard deviation within ∆E*ab 0.08 |
| Average of 30 measurements of standard white plate | |
| Lamp Life | 3 years, more than 1 million time |
| Charging Time | 8 hours-100% electricity |
| Measurement Times Before Recharging | 3000 times in 8 hours |
|
Ambient Temp./Humidity Range |
-10~40°C, relative humidity 0~85% without condensation |
| Data Interface | USB |
| Optional Accessory | Miniature thermal printer, Powder test box |
| Power Supply | Rechargeable li-ion battery 3.7V@3200mAh |
| External Size (W*D*H) | 205*67*80 mm |
| Net Weight | 0.5 Kg |
