MSE PRO 45L Hot Air Sterilizing Oven LED Controller
SKU: MA4172

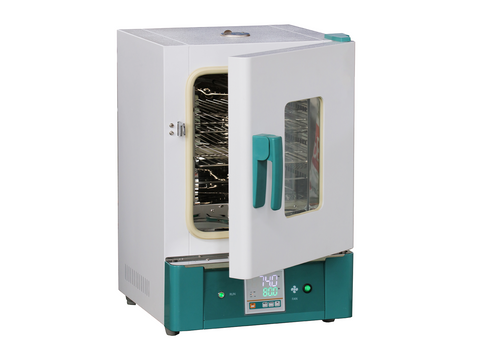

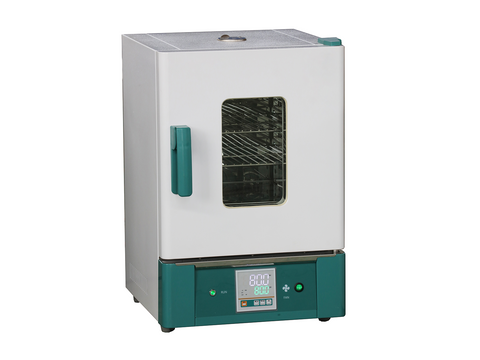

MSE PRO™ 45L Hot Air Sterilizing Oven LED Controller
The MSE PRO Hot Air Sterilizing Drying Oven is an efficient and easy-to-operate dry heat sterilizer designed for high-temperature sterilization and drying tasks. With advanced airflow technology and intelligent temperature control, it delivers precise, uniform heating while ensuring operational safety and durability.
- Horizontal Air Circulation: Dual air ducts enable high-efficiency airflow with excellent temperature uniformity throughout the chamber.
- PID Temperature Controller: Ensures stable operation and includes over-temperature protection for safe and accurate thermal processing.
- LED Digital Display: Integrated fan switch and bright LED screen allow clear monitoring and easy operation.
- High-Temperature Blast Motor: Supports continuous, high-performance drying and sterilizing cycles.
- Anti-Hot Handle Design: New safety handle minimizes risk of burns, enhancing user protection during use.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Sterilizing Drying Ovens. Please contact us for more information.
Specifications:
| SKU# | MA4172 | |
| Cycle Mode | Natural convection | |
| Function | Temp. Range | RT+10-300℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±1℃ | |
| Temp. Uniformity | ±3.5% | |
| Structure | Inner Chamber | Mirror Stainless Steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality rock wool board(with CE) | |
| Heater | Nickel chromium alloy heating wire | |
| Power rating | 1.2kW | |
| Exhaust hole | Φ35mmtop(with function of test hole) | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | Display on LED | |
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop. | |
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
|
| Sensor | PT100 | |
| Safety Device | Over temperature sound-light alarm | |
| Specification | Inner Chamber size (W*L*H) | 350*350*350 mm |
| Exterior size (W*L*H) | 500*550*7355 mm | |
| Volume | 45L | |
| Shelf number | 6 | |
| Load per rack | 15 kg | |
| Shelf space | 40 mm | |
| Current rating (50/60HZ) | AC220V/5.5A | |
| Net Weight | 37 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories | Spare Shelf | |
