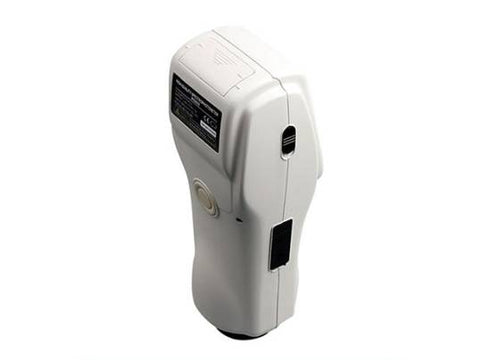

MSE PRO 400~700nm Spectrophotometric Colorimeter
SKU: BB2203
MSE PRO™ 400~700nm Spectrophotometric Colorimeter
The MSE PRO Spectrophotometric Colorimeter is a high-precision instrument designed for color measurement, matching, and management across multiple industries, including plastics, textiles, coatings, printing, food, cosmetics, and scientific research. It accurately measures reflectance spectrum and other color indices for quality control and product consistency. Equipped with advanced color management software, the device seamlessly connects to a PC for enhanced functionality and data analysis, making it an ideal choice for laboratories, manufacturers, and research institutions.
- High-Precision Color Measurement – Accurately measures reflectance spectrum and color indices.
- Wide Industry Applications – Used in plastics, textiles, printing, cosmetics, food, and scientific research.
- Advanced Color Management Software – Connects to a PC for extended analysis and quality control.
- Reliable Quality Control – Supports color matching and management for consistent product standards.
- User-Friendly & Versatile – Ideal for laboratories, manufacturers, and research institutes.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Spectrophotometric Colorimeters. Please contact us for more information.
Specifications:
| SKU# | BB2203 |
| Illumination/Observation System | d/8(diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978 |
| Integrating Sphere Size | Φ58mm |
| Light Source | Combined LED sources |
| Sensor | Silicon photodiode array |
| Wavelength Range | 400-700nm |
| Wavelength Pitch | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Φ8mm |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB&WI&YI |
| Color Difference Formula | ∆E*ab, ∆E*uv, ∆E*94, ∆E*CMC(2:1), ∆E*cmc(1:1), ∆E*cmc(I:c), CIE2000∆E*00, ∆E*(h) |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter). YI(ASTM D1925, ASTM 313), Mesmerism index (Mt), Color strength color stain, Color fastness |
| Data | Metamerism Index (Mt), Color Strength Color Stain, Color Fastness |
| Observer | 2°/10° |
| Illuminant | D65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F8, F7, F8, F9, F10, F11, F12 |
| Display Data | Spectral value/Graph, Colorimetric value, Color difference value/Graph, Pass/Fail result, Color offset, Color simulation, Color index setting(∆E*94, ∆E*cmc, ∆E2000), Tolerance prompt, Reverse prompt, Time setting, Language sating, Restore factory setting |
| Measurement Time | 1.5s |
| Repeatability | Spectral reflectance: Standard deviation within 0.1% (400-700nm: within 0.2%) Colorimetric value: Standard deviation within ∆E*ab 0.04 (Measurement conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within ∆E*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Battery | Li-ion battery. 2800 times within 8 hours. |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display | 3.5 inch TFT LCD, Capacitive touch screen |
| Interface | USB/RS-232 |
| Data Memory | 1000 Standards, 15000 Samples |
| Ambient Temp. | 0~40°C (32~104°F) |
| Storage Temp. | -20~50°C (-4~122°F) |
| Standard Accessory | Power adapter, Li-ion battery, Operating instruction, CD-ROM (Containing management software), Data line, White and black calibration cavity, Protective cover and wrist strap |
| Optional Accessory | Universal test components, Micro printer, Powder test box |
| External Size(W*D*H) | 90*77*230 mm |
| Net Weight | 0.6 Kg |
| Notes | The specifications are subject to change without notice |
