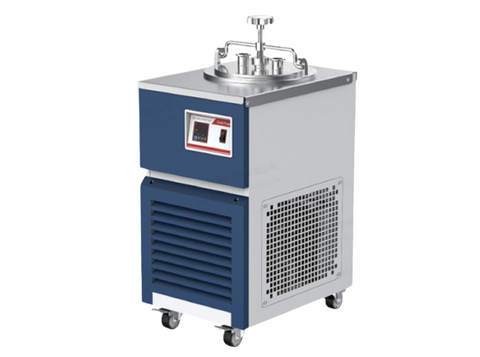

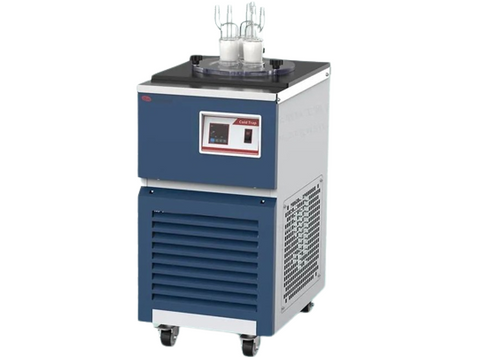

MSE PRO -40℃ Cold Trap (5L Capacity)
SKU: MA2023
MSE PRO™ -40℃ Cold Trap (5L Capacity)
Applications:
The cold trap effectively captures water vapor and noxious gas emissions from vacuum drying ovens and pressure-reduce concentration equipment, promoting efficient operation of the vacuum system while boosting the longevity of the vacuum pump.
Specifications:
| SKU# | MA2023 | MA2024 |
| Min Temperature of Unloading | -40℃ (-80℃ optional) | |
| Power Supply | 110V, 60Hz | |
| Cooling Method | Direct cooling | Indirect cooling |
| Cooling Power | 300W | |
| Reservoir | 5L | |
| Reservoir Size | Φ160×250mm | |
| Reservoir Material | SUS316L | SUS304 |
| Dimensions (W×D×H) | 388×454×781mm | 350×470×811mm |
| Net Weight | 45kg | |
| Warranty | One-year limited warranty with lifetime support. Not responsible for damage caused by improper use. | |
