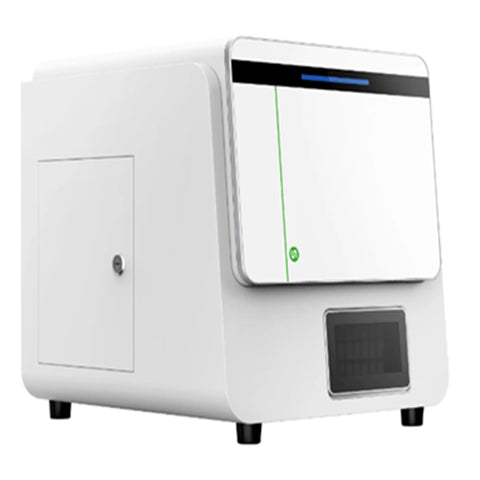

MSE PRO 4-Laser Micro Particle Flow Cytometer

By incorporating a novedesign of 561nm all-solid-state laser and violet side-angle scattering channel (VSSC), MSE PRO™ 4-Laser Micro Particle Flow Cytometer enables to supporting fine analysis of up to 14 colors or detection small particles with 13 colors.

Superior Performance

Unlimited Potential

VSSC: Unlock A New Micro-World of 80 nm Size with Nanoscale Precision

The violet side scatter channel (VSSC) significantly enhances the resolution capability for micro-particles, such as bacteria, viruses, nanoscale drug carriers, and extracellular vesicles (EV) :

The integration of VSSC enables simultaneous analysis of heterogeneous populations with micro-particle sizes from 80nm to 1.3μm;

VSSC not only enables to distinguish the size of nanoparticles, but also precisely identify the differences in microsphere materials through scattered light changes.

561nm Laser: Outstanding Red Fluorescence Detection Performance

The 561nm laser is the best excitation light for mCherry and other red fluorescent proteins;

The excitation efficiency of PE family dyes is increased by over 40% ;

It can simplify operation by reducing the overlap between FITC and fluorescent dyes of PE family for eliminating fluerescence compensation regulation;

8-peak detection results of SPHERO™ rainbow beads, demonstrates excellent instrument sensitivity:

Patented Laser Stabilization Design, Significantly enhancing performance:

All channel Stain Index (SI) have been improved, and weak expression markers and low content cells can be clearly distinguished.

Intelligent and Efficient Throughout, User-Friendly, and Highly Accurate Detection:

01 Sample Preparation:

02 Startup:

One-click quick startup instant stable ues:

● The process of stability only requires 7minutes without the need for warm-up, saving time;

● Can ensure stable laser performance and prolong laser lifespan.

03 Measurement:

Real-time monitoring, smart troubleshooting:

● Intelligent monitoring, automatically resolving anomalies without manual processing;

● Intelligent anti-collision design of sampling needle ensure safe use and smooth detection.

Multiple patented designs ensure accurate and reliable detection results:

● Unique precise temperature control system of laser and detecor;

● Integrated locking optical path;

● 3Dring filters;

● Independent fibler conduction.

04 Analysis:

Intelligent analysis software-ModelFlower

● Bilingual display in Chinese and English, graphical tools and wizard;

● Audit trail for electronic signatures: meeting the requirements of 21 CFR part 11;

● Automatic identification cell position and gating, eliminating the need for complicated adjustments and simplifying analysis;

● Built-in common analysis modules for scientific research;

● The overlay function can use scatter plots or histograms to display various data analysis;

● Support LIS statistics and graphic sharing function;

● One-touch automatic QC to monitor the resolution of each fluorescent channel and the stability of median fluorescence intensity(MFI);

● Levey-Jennings graph tracks and monitors instrument performance.

05 Shutdown:

Smart maintenance, automatic shutdown:

No waiting or supervision time required, once detection is completed, the system will automatically proceed to cleaning, shutdown, and power-off, requiring no human assistance.

Configuration：

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC
