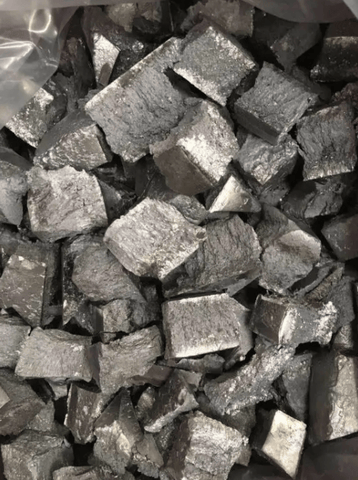

MSE PRO 3N (99.9%) Ytterbium (Yb) Pieces (<12mm) Evaporation Materials
SKU: TA8322
MSE PRO™ 3N (99.9%) Ytterbium (Yb) Pieces (<12mm) Evaporation Materials
Ytterbium (Yb) is a silver white rare-earth metal. It is usually used as a dopant in various materials including steels and glass fibers. Ytterbium thin films are used for stress gauges since pure Ytterbium is sensitive to stress change. It is also co-evaporated with other materials or in different atmospheres to make compound thin films.
The dimensions and purities can be customized upon request. Please contact us for customization or bulk orders.
| Name | Ytterbium |
| Chemical Formula | Yb |
| CAS # | 7440-64-4 |
| SKU# |
|
| Atomic Number | 70 |
| Molecule Weight (g/mol) | 173.054 |
| Color/Appearance | Silvery White, Metallic |
| Purity | ≥99.9%, 3N |
| Thermal Conductivity (W/m.K) |
34.9 |
| Melting Point (°C) | 819 |
| Coefficient of Thermal Expansion (/K) | 26.3 x 10-6 |
| Theoretical Density (g/cm3) | 6.98 |
| Z Ratio | 1.13 |
| E-Beam | Good |
| Thermal Evaporation Techniques |
Boat: Ta |
| Temp. (°C) for Given Vap. Press. (Torr) |
10-8: 520 10-6: 590 10-4: 690 |
| E-Beam Crucible Liner Material | Tantalum |
MSE Supplies offers a variety of crucibles for evaporation materials. We can customize the dimensions based on your requirements.
References:
1. Optical properties and microcharacteristics of thermally evaporated ytterbium films. Thin Solid Films 75, no. 2 (1981): 139-142.
