MSE PRO 2L Double Planetary Vacuum Mixer for Battery Slurry Mixing

SKU: BR0406

  • $ 22,92395
  • Save $ 2,75100

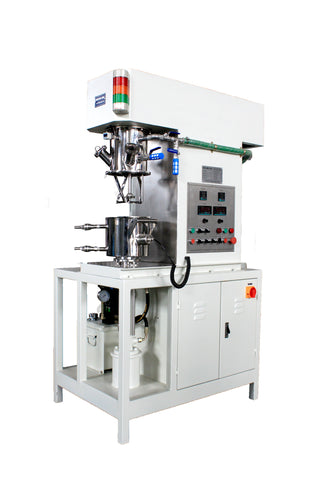

MSE PRO™ 2L Double Planetary Vacuum Mixer for Battery Slurry Mixing

MSE Supplies offers a vacuum mixer with a 2-liter container and PLC Touch Panel Control. It is deigned to provide a bubble free blending of complex materials under vacuum with extreme uniformity. The observation window on the mixing tank is convenient for monitoring the entire mixing process. It is widely used for slurry mixing for battery research and production.

The mixer capacity is customizable upon request. Please contact us for customization or bulk order.

    MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

      SKU BR0406
      Capacity 2L or customization
      Container Inner Diameter 180mm
      Container Inner Height 150mm
      Container Material 304 Stainless steel
      Stirring Speed 8~76rpm
      Stirring Power 750W
      Dispersion Speed 450~4450rpm
      Dispersion Power 1100W
      Accessories

      1 vacuum pump included

      (1 water chiller optional)

      Controller  PLC Control Panel
      Dimension 1000x700x1835mm
      Weight ~550kg
      Voltage 3 phase 380V or customization
      Power 3kW
      Warranty One year limited warranty with lifetime product support
