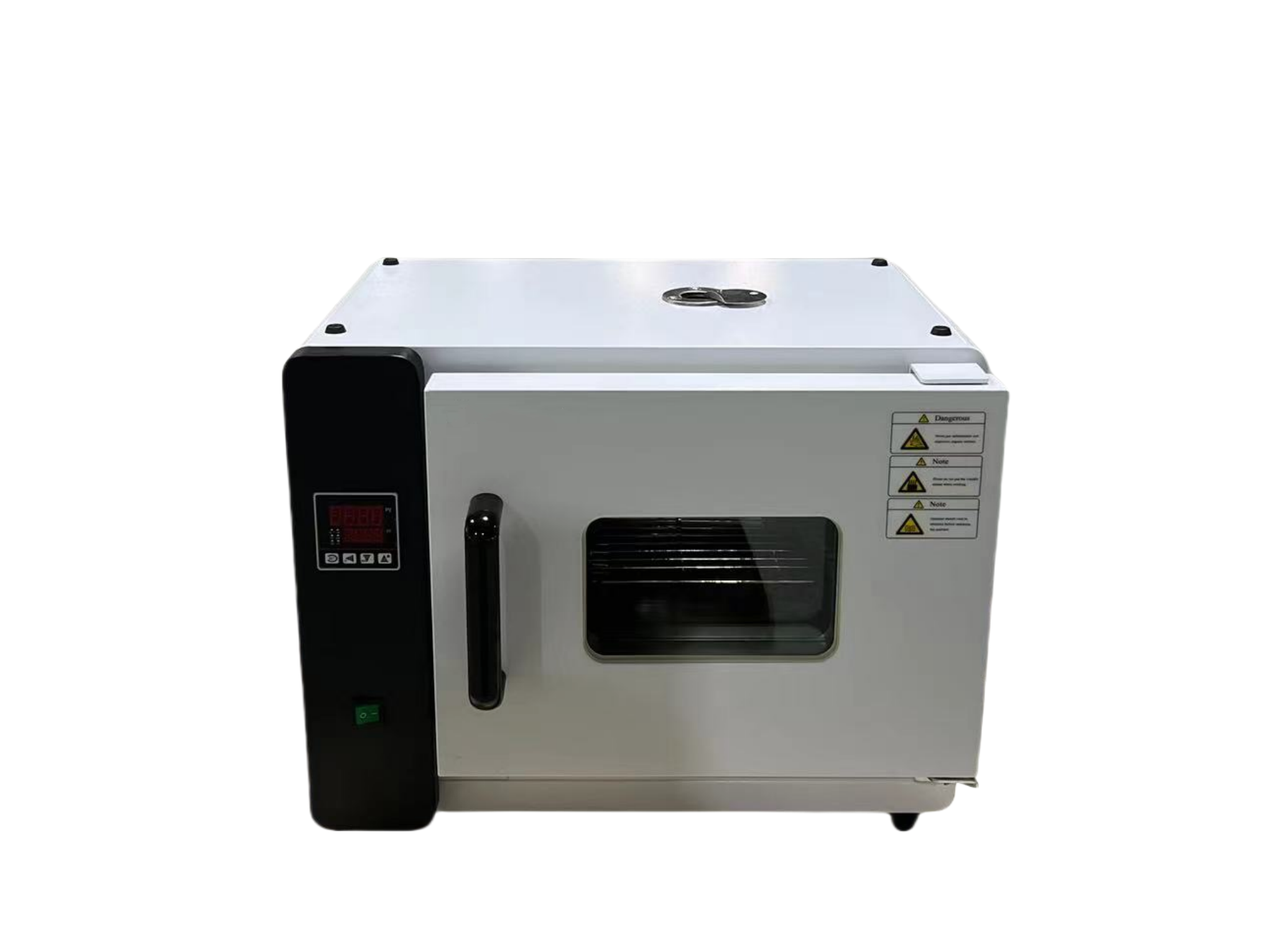

MSE PRO™ 25L Constant Temperature Drying Oven
The MSE PRO Constant-Temperature Drying Oven / Incubator (Horizontal Type) is designed for precise drying or culturing of small samples, making it ideal for laboratories and research facilities. It features intelligent fuzzy PID temperature control, ensuring faster stabilization and reduced overshoot compared to traditional controllers. Its compact horizontal design supports stacking or wall mounting, saving valuable workspace, while horizontal air circulation ensures uniform heating throughout the chamber.
- Advanced Fuzzy PID Control: Offers faster temperature stabilization and reduced overshoot for more accurate results.
- Space-Saving Design: Can be stacked or wall-mounted, optimizing workspace usage.
- User-Friendly Operation: Features reservation function, Fahrenheit/Celsius switch, and three-point temperature correction.
- Efficient Horizontal Air Circulation: Left fan design ensures uniform temperature across the chamber.
-
Convenient Door Access: Equipped with a touch bead door lock for easy opening and secure sealing.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Constant Temperature Incubators. Please contact us for more information.
Specifications:
| SKU# | MA4682 | |
| Cycle Mode | Forced convection | |
| Function | Temp Range | RT+5-65℃ |
| Temp Resolution | 0.1℃ | |
| Temp Fluctuation | ±1℃ | |
| Temp Uniformity | ±1℃ | |
| Structure | Inner Chamber | High quality stainless steel plate |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation Layer | High quality rock wool board(with CE) | |
| Heater | Stainless steel heater | |
| Power Rating | 0.7kW | |
| Exhaust Hole | Φ32mm top (with function of test hole) | |
| Controller | Temp Control Mode | Dual-temperature fuzzy PID |
| Temp Setting Mode | Touch button setting | |
| Temp Display Mode | Measuring temperature, display on upper row: Setting temperature, LED digital display | |
| Timer | 0-9999min(with timing wait function) | |
| Operation Function | Fixed temperature operation, timing function, auto stop | |
| Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |
| Sensor | PT100 | |
| Safety Device | Over temperature sound-light alarm | |
| Specification | Inner chamber Size(W*L*H) | 300*320*270 mm |
| Exterior Size(W*L*H) | 600*500*482 mm | |
| Volume | 25L | |
| Shelf Number | 9 | |
| Load Per Rack | 15kg | |
| Shelf Space | 25mm | |
| Current Rating(50/60HZ) | AC220V/3.2A | |
| Net weight | 15 | |
| Accessory | Shelf | 2 |
| Shelf Frame | 4 | |
| Optional Accessories | Shelves | |
