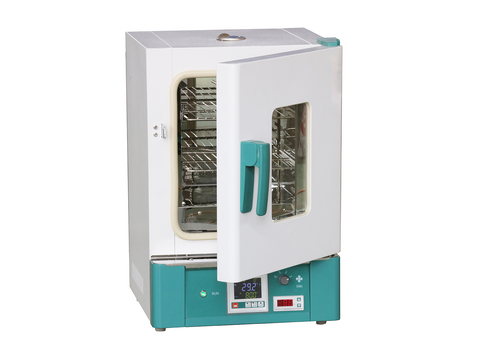

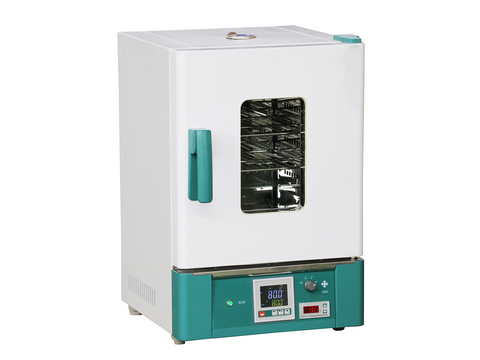

MSE PRO 230L Hot Air Sterilizing Oven LCD Controller, Digital Temp. Limiter
SKU: MA4187
MSE PRO™ 230L Hot Air Sterilizing Oven LCD Controller, Digital Temp. Limiter
The MSE PRO Hot Air Sterilizing Drying Oven combines powerful sterilization performance with intelligent temperature control and durable construction. Ideal for laboratory and industrial environments, it offers reliable and uniform drying through horizontal forced air circulation, paired with advanced safety features and a user-friendly design.
- LCD Temperature Controller: Offers precise temperature monitoring and intuitive operation for accurate process control.
- Adjustable 4-Speed Fan: Allows customization of airflow for various drying and sterilizing needs.
- Over-Temperature Protection System: Ensures safety by automatically managing excessive temperature conditions.
- High Precision Independent Temperature Limiter: Provides an additional safety layer for critical temperature control.
- Durable SUS304 Stainless Steel Body: Built with corrosion-resistant, long-lasting stainless steel for high-temperature operation.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Sterilizing Drying Ovens. Please contact us for more information.
Specifications:
| SKU# | MA4187 | |
| Cycle Mode | Natural convection | |
| Function | Temp. Range | RT+10-300℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±1℃ | |
| Temp. Uniformity | ±3.5% | |
| Structure | Inner Chamber | Mirror Stainless Steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality rock wool board(with CE) | |
| Heater | Nickel chromium alloy heating wire | |
| Power rating | 3.0kW | |
| Exhaust hole | Φ35mmtop(with function of test hole) | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | Display on upper LCD | |
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop. | |
| Additional function | SHigh precision digital independent temperature limiter, sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
|
| Sensor | PT100 | |
| Safety Device | Digital Independent Temp. limiter, Over temperature sound-light alarm. | |
| Specification | Inner Chamber size (W*L*H) | 600*500*750 mm |
| Exterior size (W*L*H) | 735*835*1115 mm | |
| Volume | 230L | |
| Shelf number | 17 | |
| Load per rack | 15 kg | |
| Shelf space | 40 mm | |
| Current rating (50/60HZ) | AC220V/13.6A | |
| Net Weight | 94 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories | Spare Shelf, RS485 Interface, Printer, Program controller, U-disk storage; SUSS304 body, 3.5-inch color touch screen temperature controller. |
|
