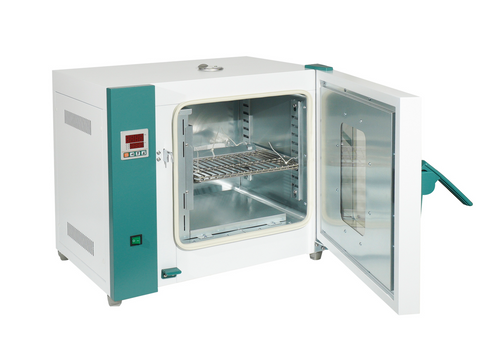

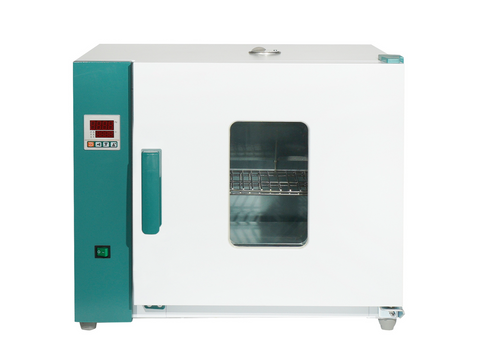

MSE PRO 225L Natural Convection Oven Horizontal Type LED Dispaly, SUS Chamber
SKU: MA4169
MSE PRO™ 225L Natural Convection Oven Horizontal Type LED Dispaly, SUS Chamber
The MSE PRO Natural Convection Oven Horizontal Type is engineered for high-precision and high-density sample drying applications. With horizontal air flow, space-efficient design, and excellent temperature uniformity, this oven ensures reliable performance for laboratories and industrial settings. It offers options for both forced fan cooling and natural convection depending on the model.
- Horizontal Forced Air Circulation: Ensures excellent temperature uniformity and efficient heat distribution, maximizing space utilization within the chamber.
- High Space Utilization: Designed with a compact layout and optimized interior space to accommodate more samples without sacrificing performance.
- Classical Natural Convection Mode: Offers a reliable and gentle drying method ideal for temperature-sensitive materials.
- New Anti-Hot Handle: Upgraded with a user-safe handle to prevent burns and improve operational safety.
-
Durable and Reliable Construction: Built for long-term use in demanding laboratory environments, with consistent performance and safety in mind.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Horizontal Drying Oven. Please contact us for more information.
Specifications:
| SKU# | MA4169 | |
| Cycle Mode | Natural convection | |
| Function | Temp. Range | ±2.5% |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±1℃ | |
| Temp. Uniformity | ±3.5% | |
| Structure | Inner Chamber | High quality stainless steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality rock wool board(with CE) | |
| Heater | Nickel chromium alloy heating wire | |
| Power rating | 3.0kW | |
| Exhaust hole | Φ35mm top(with function of test hole) | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | LED Digital display | |
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop. | |
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |
| Sensor | PT100 | |
| Safety device | Over temperature sound-light alarm | |
| Specification | Inner Chamber size (W*L*H) | 600*500*750 mm |
| Exterior size (W*L*H) | 902*622*986 mm | |
| Volume | 225L | |
| Shelf number | 25 | |
| Load per rack | 15 kg | |
| Shelf space | 25 mm | |
| Power rating (50/60HZ) | AC220V/13.6A | |
| Net Weight | 77 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories | Shelves | |
