MSE PRO 20L LED Overhead Stirrer
SKU: BB1338

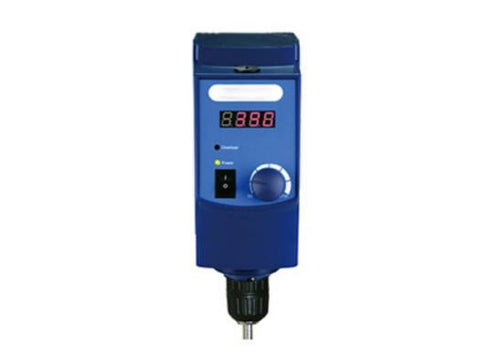

MSE PRO™ 20L LED Overhead Stirrer
The MSE PRO™ Overhead Stirrer series is a high-performance laboratory stirrer designed to handle demanding applications with precision and reliability. It offers stirring capacities up to 20L, a speed range of 50–2200 rpm, and torque monitoring via an advanced LCD display. With features like overload protection, and compatibility with high-viscosity samples, it is ideal for various scientific and industrial tasks. The robust IP21-rated design ensures durability, while its RS232 interface enables seamless connectivity and data monitoring.
- High Stirring Capacity and Precision: Supports up to 20L stirring with a speed range of 50–2200 rpm, ideal for both small and large-scale operations.
- Advanced Torque and Overload Monitoring: Equipped with an LCD display for torque and overload protection, including visual alarms and automatic motor stops for enhanced safety.
- High-Viscosity Compatibility: Handles viscosities up to 10,000 mPa·s, ensuring excellent performance with challenging samples.
- Durable and Safe Design: Built with IP21 protection and a robust structure to withstand harsh laboratory environments and prevent liquid intrusion.
- Seamless Connectivity: Features RS232 interface for easy integration with external systems and advanced data tracking.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Overhead Stirrers. Please contact us for more information.
Specifications:
| SKU# | BB1338 |
| Max. Stirring Capacity | 20L |
| Motor Input | 60W |
| Motor Output | 50W |
| Speed Range | 50-2200rpm |
| Speed Control Accuracy | / |
| Speed Display | LED |
| Max. Torque | 40N•cm |
| Torque Display | / |
| Overload Protection | Visual alarm, motor automatic stop |
| Overload protection display | / |
| Max. Viscosity | 10000mPa•s |
| Chuck Diameter Range | 0.5-10mm |
| Protection Type | IP21 |
| Working Environment | 5-40°C, 80%RH |
| Interface | / |
| Power Consumption | 70W |
| Power Supply | AC110/220V (Customizable) |
| Standard Accessory | Propeller Stirrer BB1340 |
| External Size (W*D*H) | 83*186*220 mm |
Optional Accessories of Overhead Stirrer:
| SKU 110/220V | Description | |

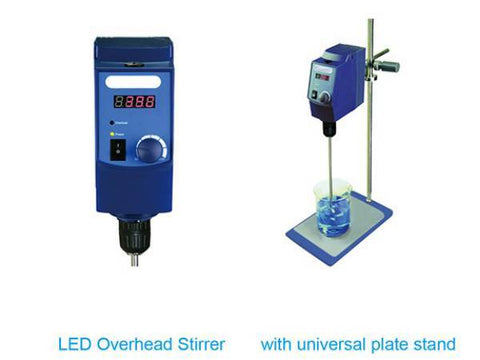

| BB1339 | BB1349 | Universal plate stand (W*D: 20*31cm), including support holder (H: 78cm) and fixing device |
| BB1340 | BB1350 | Propeller stirrer, shaft length 40cm, stirrer diameter 5cm, 316L stainless steel Standard stirring element, used at medium and high speeds |
| BB1341 | BB1351 | Straight stirrer, shaft length 40cm, stirrer diameter 6cm, 316L stainless steel Suitable for mixing of low viscosity media, used at medium and high speeds |
| BB1342 | BB1352 | Paddle stirrer, shaft length 40cm, stirrer diameter 6.8cm, 316L stainless steel Gentle processing samples, used at low and medium speeds |
| BB1343 | BB1353 | Centrifugal stirrer, shaft length 40cm, stirrer diameter 9cm, 316L stainless steel, Blades open with in creasing speed for stirring in a round vessel witha narrow neck, used at medium and high speeds |
| BB1344 | BB1354 | Pripeller stirrer, shaft length 35cm, stirrer diameter 6.5cm, PTFE coated Standard stirring element, used at medium and high speeds |
| BB1345 | BB1355 | Straight stirrer, shaft length 35cm, stirrer diameter 7cm, PTFE coated Suitable for mixing of low viscosity media, used at medium and high speeds |
| BB1346 | BB1356 | Paddle stirrer, shaft length 35cm, stirrer diameter 6.8cm, PTFE coated Gentle processing samples, used at low and medium speeds |
| BB1347 | BB1357 | Centrifugal stirrer, shaft length 35cm, stirrer diameter 8.5cm, PTFE coated Blades open with increasing speed for stirring in a round vessel with a narrow neck, used at medium and high speeds |
