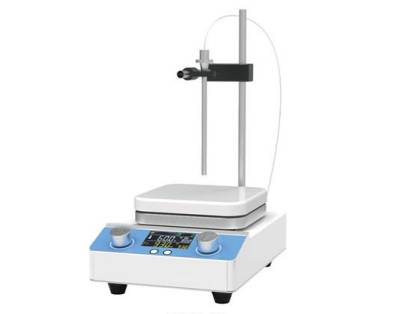

MSE PRO 200*200mm Hotplate Magnetic Stirrer
SKU: BB1160
MSE PRO™ 200*200mm Hotplate Magnetic Stirrer
The MSE PRO™ Hotplate Magnetic Stirrer, Temperature-Controlled Magnetic Stirrer is an advanced lab solution designed for precise heating and mixing. With a built-in temperature control system and a wide temperature control range, it ensures reliable and accurate performance. The digital display screen allows for precise setting of temperature and rotation speed. Equipped with a PT100 temperature sensor, it provides enhanced accuracy and safety with a relay over-temperature protection alarm. The rubber feet ensure stability during operation, making it a dependable tool for various laboratory applications.
- Accurate Control: Built-in temperature control system with a digital display for precise adjustments of temperature and speed.
- Enhanced Safety: Features a relay over-temperature protection alarm for secure and reliable operation.
- Temperature Sensor Integration: Includes a PT100 temperature sensor for superior measurement accuracy.
- Stable Design: Rubber feet provide increased stability during mixing and heating tasks.
-
User-Friendly Operation: Wide temperature control range and intuitive digital interface for easy and efficient use.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Hotplate Magnetic Stirrers. Please contact us for more information.
Specifications:
| SKU# | BB1160 |
| Working Plate Size | 200*200 mm |
| Platform Material | Aluminum, anodized |
| Motor Type | DC brushless motor |
| Number of Stirring Points | 1 |
| Maximum Stirring Volume (water) | 20L |
| Stirrer Maximum Size | 50 mm |
| Rotation Range | 20-2000r/min |
| Data Display | LED |
| Heating Temperature Range | Room temperature-360.0°C |
| Overheating Protection | 360-400°C adjustable |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT100 (accuracy ±0.6C) (Standard) |
| Speed Control Accuracy | ±1rpm |
| Protection Class | IP21 |
| Motor Power | 20W |
| Heating Power | ≤400W |
| Power Supply | Standard: 220V, Optional: 110V |
| External Size (L*W*H) | 222*320*122 mm |
| Net weight | 4.6 kg |
