MSE PRO 20 mm Spherical Premium Yttria Stabilized Zirconia YSZ Milling Media, 1 kg

SKU: BA0115

  • $ 9295
  • Save $ 1200

Bulk orders? Please contact us for Bulk Quotation.

Qty (Each) Price (Each)
1 - 4 $ 92.95
5 - 24 $ 77.95
25 - 99 $ 70.95
100 - 249 $ 65.95
250 - 250+ $ 62.95

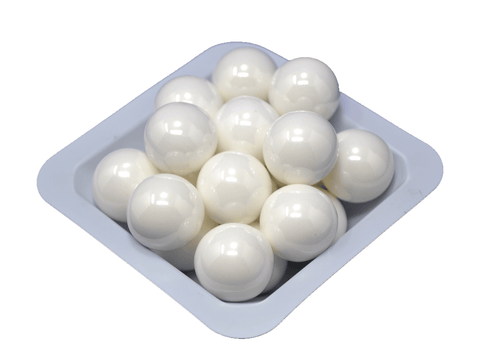

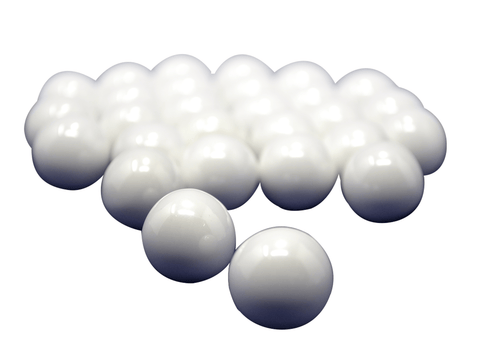

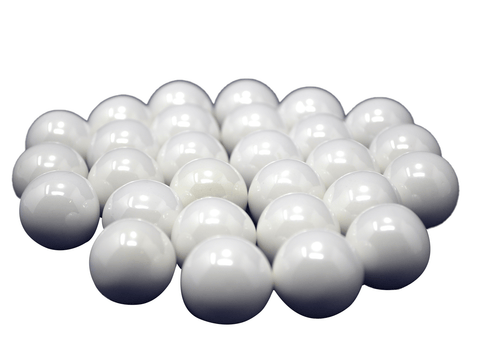

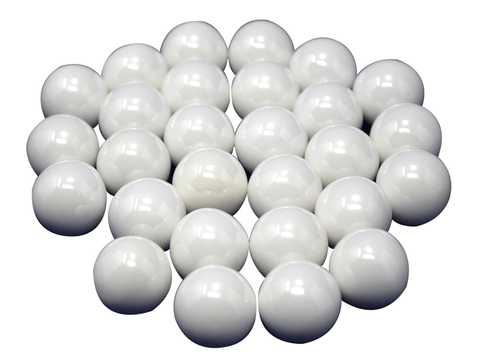

Description for 20 mm Yttrium Stabilized Zirconium Oxide Grinding/Milling Media Balls

Composition: 5.25wt%, YSZ

Product Number: BA0115

  • Quantity: 1kg - 20 mm YSZ balls, Approx. 40 balls

We sell in tons, please contact us for high volume purchase.

For zirconia micro milling media with less than 2mm diameter YSZ balls, visit the zirconia micro milling media webpage.

Y2O3 Stabilized Zirconia Milling Media

Specifications for 5.25 wt % Y2O3 Stabilized Zirconia Milling Media Specification






94.7% ZrO2
5.2% Y2O3

Bulk Density



Specific Density


~ 6.1

Hardness Mohs >9.0
Elastic modulus GPa 200
Thermal Conductivity W/m.K 3
Crushing Load KN ~ 20
Fracture Toughness MPa*m1-2 9
Grain size um 0.5
Thermal expansion
Coefficient (20-400 °C)
1x10 -6 / °C 9.6


Material Specification Spherical Premium Yttria Stabilized Zirconia Milling Media



ZrO2 (+ HfO2) , wt%,


Y2O3, wt%,


Al2O3, wt%,


SiO2, wt%,


Fe2O3, wt%,



Features Spherical Premium Yttria Stabilized Zirconia Milling Media

  1. Highly cost-effective, low wear and long lifetime: YSZ milling/grinding material is the most durable and efficient media for ball milling of ceramic materials. Due to its ultra-low wear loss, its operational cost can be lower.
  2. High specific gravity, high efficiency, which saves processing time.
  3. Highly resistant to acid and solvents.
  4. Highly polished, smooth, easy to clean, low abrasion to the equipment.
  5. High mechanical strength, good toughness, impact resistance, no broken beads
  6. Mainly used for lab planetary ball mill machine. Can also be used for attrition mills.
  7. Its virtually contamination-free character makes it an ideal solution for a variety of applications that demand minimal contamination, including, but not limited to, nano materials, pharmaceutical, food, chemical, battery, ink, toner, dielectric, solar cell, semiconductor, etc.
