CHEMCO 2.0~2.5 mm Yttria Stabilized Zirconia YSZ Micro Milling Media, 1 kg - Milling Media - CHEMCO - MSE Supplies

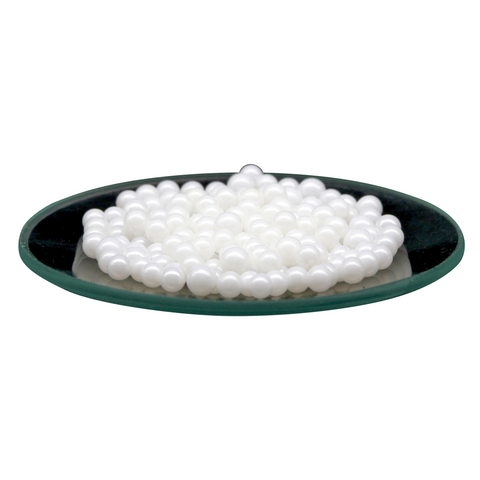

MSE PRO 2.0~2.5 mm Yttria Stabilized Zirconia YSZ Micro Milling Media, 1 kg

SKU: YTZP_2.0-2.5mm

  • $ 10495
  • Save $ 1300

Request a Quote

Zirconia Beads, Partially Stabilized with Yttria, Sintered

YTZP yttria zirconia beads are made of high-grade and nanometer Yttria Stabilized Zirconia (YSZ) which is proudly produced by our own facility in large and homogenous batches. This advanced precursor material guarantees excellent mechanical properties, outstanding wear resistance and good corrosion resistance. This high density bead is used to achieve maximum milling results at minimum product contamination rates.

Until now, CHEMCO YTZP zirconia beads are successfully being used in all modern types of mills, which include vertical mills, horizontal mills, agitated media mills, stirred media mills, such as IsaMill™, Metso Vertimill®, Metso SMD, FLSmidth® VXPmill, OUTOTEC HIGmill®, HOSOKAWA ALPINE agitated media mills, NETZSCH mills, Buhler bead mills, DYNO® mills, CMC Supermill PLUS®, 'Red Head' vertical media grinding mills, Niemann Kreis-Basket-Mill®  Getzmann bead mill & basket mill, Vollrath bead mill, HCP Immersion mill, IEC basket mill & bead mills, EMI mills, just name of a few...

Features

  • High density media ideal for high energy mills, maximizing throughput and productivity

  • High fracture toughness and high wear resistance minimize the contamination of beads during high speed milling

  • At least 15% superior to Ceria Stabilized Zirconia medias in wear rate, proved Tby many tests

Technical Data

Specific density 6.0 ± 0.05 g/cm3
Bulk density 3.7 kg/l
Hardness (HV5) 1306 ( ∅2mm Bead )
Mohs’ Hardness 9
Breaking load > 1 KN
Color White ( pearl sheen )

Standard Sizes

Beads (∅, mm) 0.03 0.05 0.1 0.2 0.2 – 0.3 0.3 – 0.4
0.4 – 0.6 0.6 – 0.8 0.8 – 1.0 1.0 – 1.2 1.2 – 1.4 1.4 – 1.7
1.6 – 1.8 1.8 – 2.0 1.8 – 2.2 2.2 – 2.5 2.5 – 2.8 2.8 – 3.2
3.0 – 3.5 3.5 – 4.5 4.5 – 5.0 5.0 – 5.5 6.0 – 7.0 7.0 – 8.0
Balls (∅, mm) 8.0 – 9.0 9.3 – 10.7 11.0 – 13.0

Main Applications

YTZP yttria zirconia beads can be used in milling and dispersion of following materials, just name a few:

  • Bio-tech (DNA, RNA & protein extraction and isolation)

  • Chemicals including Agrochemicals e.g. fungicides, insecticides and herbicides

  • Coating, paints, printing and inkjet inks

  • Cosmetics (Lipsticks, Skin & sun protection creams)

  • Electronic materials and components e.g. CMP slurry, ceramic capacitors,  lithium iron phosphate battery

  • Wheat seeds and Food (Complying with the regulations of European Food 1935/2004/EC and FDA)

  • Minerals e.g. TiO2, Calcium Carbonate and Zircon

  • Pharmaceuticals

  • Pigments and dyes

Some other applications, just name a few:

  • Flow distribution in process technology

  • Vibro-grinding and polishing of jewelry, gemstones & aluminum wheels

  • Sintering bed with good thermal conductivity, can sustain high temperatures
