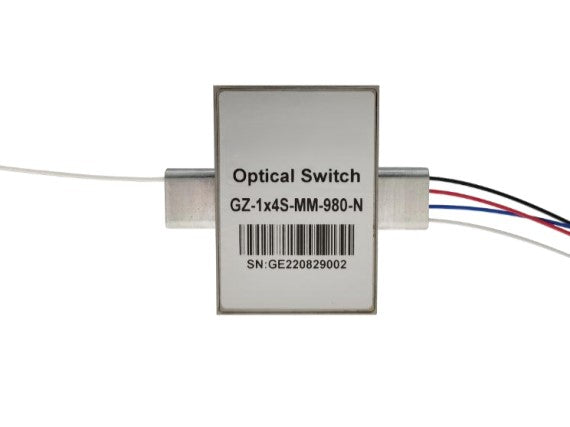

MSE PRO 1x4S Optical Switch (for Special Wavelength and Large Core Fiber)

Name: MSE PRO 1x4S Optical Switch (for Special Wavelength and Large Core Fiber)
Brand: MSE Supplies LLC
SKU: OSW011
Availability: InStock

SKU: OSW011

$ 0.00

Still have questions? Ask our experts!

Email +1 (520) 789-6673

Parameters	Unit	OSW011
Operating Wavelength	nm	780, 980, 1060, 1310,1550 etc
Insertion Loss	dB	≤1.5
Wavelength Dependent Loss	dB	≤0.40
Polarization Dependent Loss	dB	≤0.05
Temperature Dependent Loss	dB	≤0.20
Return Loss	dB	SM≥50 MM≥30
Cross Talk	dB	SM≥55 MM≥35
Switch Time	ms	≤8
Repeatability	dB	≤±0.02
Durability	times	≥107
Operating Voltage	V	3 or 5
Switch Type		Non-Latching/Latching
Operating Temperature	℃	－20~＋70
Storage Temperature	℃	－40~＋85
Optical Power	mw	500, 1000, 2000, 5000, 10000 etc
Dimension	mm	52.7.0L×37.2W×10.0H

Type	Optical Route	Relay	Electric Drive				State Sensor
1x4S	Optical Route	Relay	Pin 1	Pin 5	Pin 6	Pin 10	Pin 2‐3	Pin 3‐4	Pin 7‐8	Pin 8‐9
Non-Latching	COM‐ Port 1(Black)	Relay1	V＋	‐‐	‐‐	GND	Open	Close	Close	Open
		Relay2	V＋	‐‐	‐‐	GND	Open	Close	Close	Open
		Relay3	V＋	‐‐	‐‐	GND	Open	Close	Close	Open
	COM‐ Port 2 (red)	Relay1	‐‐	‐‐	‐‐	‐‐	Close	Open	Open	Close
		Relay2	V＋	‐‐	‐‐	GND	Open	Close	Close	Open
		Relay3	‐‐	‐‐	‐‐	‐‐	Close	Open	Open	Close
	COM‐ Port 3(blue)	Relay1	‐‐	‐‐	‐‐	‐‐	Close	Open	Open	Close
		Relay2	‐‐	‐‐	‐‐	‐‐	Close	Open	Open	Close
		Relay3	V＋	‐‐	‐‐	GND	Open	Close	Close	Open
	COM‐ Port 4(White)	Relay1	‐‐	‐‐	‐‐	‐‐	Close	Open	Open	Close
		Relay2	‐‐	‐‐	‐‐	‐‐	Close	Open	Open	Close
		Relay3	‐‐	‐‐	‐‐	‐‐	Close	Open	Open	Close
