MSE PRO 18L Desktop Oven LED Controller, SUS Inner Chamber
SKU: MA4192

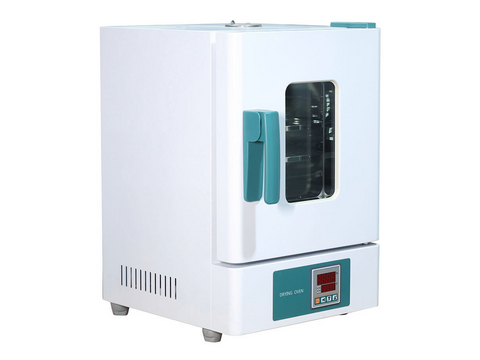

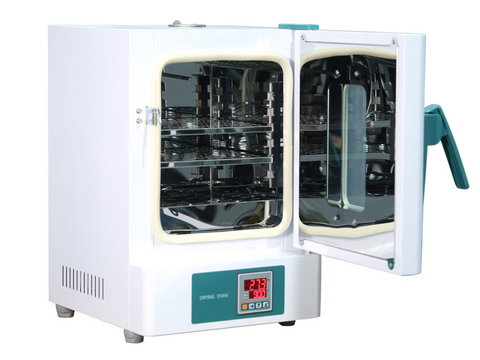

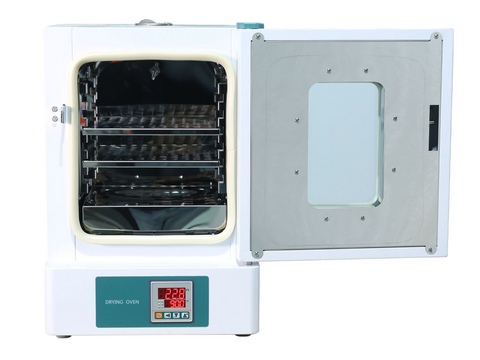

MSE PRO™ 18L Desktop Oven LED Controller, SUS Inner Chamber
The MSE PRO Desktop Constant-Temperature Drying Oven is a compact and reliable unit designed for precision thermal processing in laboratory environments. It uses natural air convection for consistent heat distribution and is equipped with an LED-controlled PID system for stable and accurate temperature management. Ideal for space-limited applications requiring efficient drying and heat treatment.
- Natural Air Convection: Hot air circulates naturally and cyclically within the chamber, ensuring uniform drying.
- Digital PID Controller: Microcomputer-based LED display system delivers intelligent and precise temperature control.
- Compact Desktop Design: Saves space while delivering dependable drying performance.
- Constant-Temperature Stability: Designed to maintain steady heat for sensitive samples or processes.
- New Anti-Hot Handle: Enhances user safety during operation with heat-resistant design.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of ortable Desktop Ovens. Please contact us for more information.
Specifications:
| SKU# | MA4192 | |
| Cycle Mode | Natural convection | |
| Function | Temp. Range | RT+10-300℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±1℃ | |
| Temp. Uniformity | ±3.5% | |
| Structure | Inner Chamber | High strength galvanized sheet |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality rock wool board(with CE) | |
| Heater | Nickel chromium alloy heating wire | |
| Power rating | 0.6kW | |
| Exhaust hole | Φ35mm top (with function of test hole) | |
| Controller | Temp. control mode | Two temperature section PID |
| Temp. set mode | Touch button setting | |
| Temp. display mode | Measuring temperature: display on the four digital tubes upper row; setting temperature: display on the lower row |
|
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop. | |
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
|
| Sensor | PT100 | |
| Safety Device | over temperature sound-light alarm | |
| Specification | Inner Chamber size (W*L*H) | 260*260*260 mm |
| Exterior size (W*L*H) | 380*455*568 mm | |
| Volume | 18L | |
| Shelf number | 6 | |
| Load per rack | 15 kg | |
| Shelf space | 29 mm | |
| Current rating (50/60HZ) | AC220V/2.7A | |
| Net Weight | 27 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories | Shelf | |
