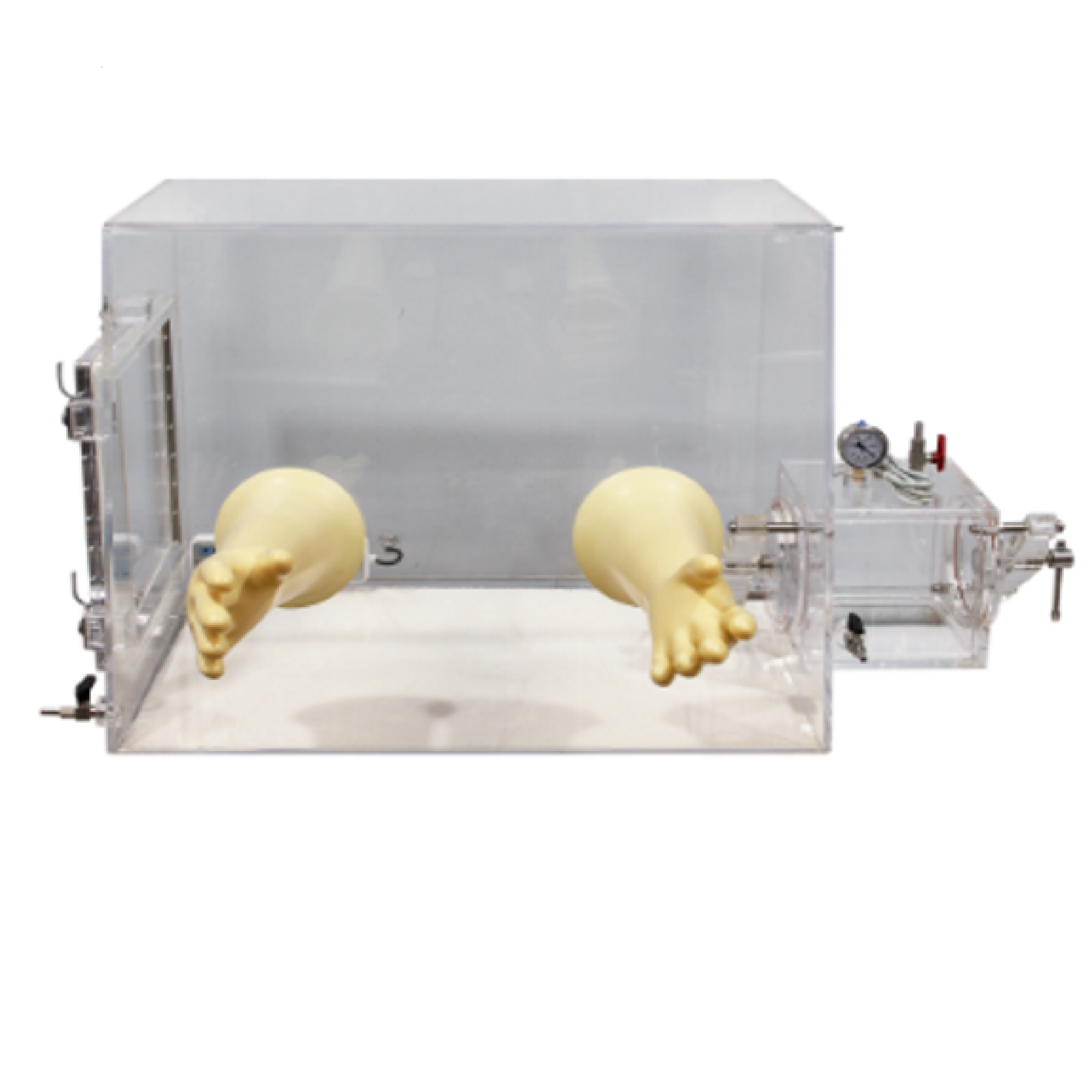

MSE PRO™ 158L Laboratory Two Port Acrylic Glove Box with Airlock Chamber(700W x 450D x 500H mm)
Introduction
The acrylic glove box is an ideal sealed solution for handling delicate materials or hazardous chemicals, due to its inert gas pumping, cleanliness, low-oxygen and low-moisture environment. Offering a low-cost alternative to stainless steel designs, this glove box serves multiple purposes.
This equipment is not suitable for use with corrosive organic reagents. The minimum achievable water and oxygen levels are 300–400 ppm, which makes it unsuitable for high-end applications such as handling battery powders.
Please note acrylic glovebox is considered as consumables and consumable products are nonrefundable or eligible for return. Quality issues or concerns must be reported upon delivery.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers different sizes of Acrylic Glove Box. Please contact us for more information.
Specifications
| Material Thickness | Acrylic (PMMA) 10mm |
| Dimensions (mm) | 700*450*500mm |
| Door Size | Square door 300*300mm |
| Glove Dimension(rubber) | 145*600*1.1 mm |
| Balls Valves(mm) | ⌀8 (2pcs) |
| Ball Valve Material | SUS304 |
| Power Pocket (pc) 1 inside | 1 inside |
| Airlock Transfer Chamber | 240W*240D*240H(mm) |
| Max. Vacuum Degree (Mpa) | -0.1 |
| Ball Valves (mm) | ⌀8 (2pcs) |
| Pressure Gauge (pc) | 1 |
| Using gas | Argon、Helium、Nitrogen(purity 99.95%) and more |
| Selective equipment | Vacuum Pump(2L or 4L or 6L or 8L),Dew instrument,oxygen analyzer,balance, furnace, etc. |
| Material PMMA | The raw material is imported from Japan and high transparency and using for long time |
*The selective equipment is not included in the glovebox purchase
Accessories are available at extra cost, please contact us.
| Vacuum Pump |
MA0757 |
| Humidity Display |
1-99% RH |
| Oxygen Display | 100ppm-21% |
| Pressure Automatic Controller | +/-2500Pa |
Please find the manual here:
