MSE PRO 150L 500℃ Drying Oven High Temp. Type
SKU: MA4106

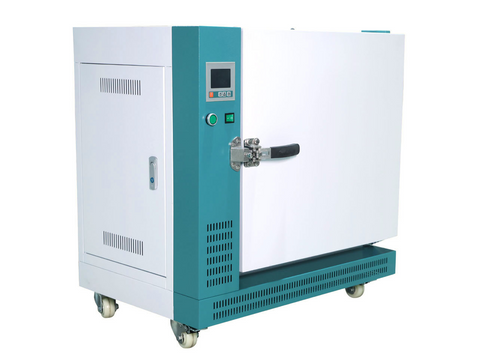

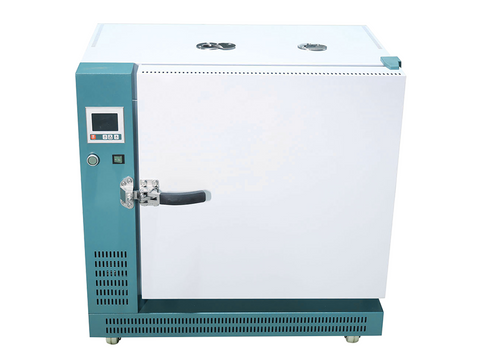

MSE PRO™ 150L 500℃ Drying Oven High Temp. Type
The MSE PRO High Temperature Forced Air Drying Oven is designed for applications that require stable, high-temperature performance up to 500°C. With a precision PID-controlled color LCD display and durable construction features such as ceramic fiber seals and a high-temp circulating fan, it is ideal for rigorous industrial, laboratory, or research applications needing long-term reliability and ease of maintenance.
- Color LCD Display with PID Controller – Provides accurate and stable temperature regulation for consistent results.

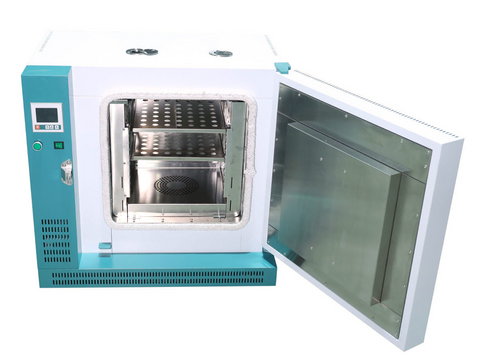

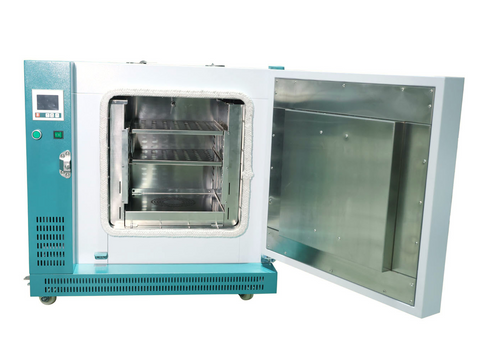

- User-Friendly Design – Rounded four-corner arc transitions and removable shelves make cleaning simple and convenient.
- High-Temperature Durability – Equipped with a ceramic fiber door seal and a circulating fan designed for prolonged high-temperature operation.
- Robust Performance – Built for long-term use in extreme heat environments, supporting continuous operations with high reliability.
-
High Temperature Range (B Type) – Capable of reaching up to 500°C, suitable for specialized thermal processing tasks.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Drying Ovens. Please contact us for more information.
Specifications:
| SKU# | MA4106 | |
| Circulation Mode | Forced Convection | |
| Function | Temp. Range | RT+20-500℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. motion | ±0.5℃ | |
| Temp. Uniformity | 2.50% | |
| Structure | Inner Chamber | SUS316L |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | Alumina Silicate Fiber | |
| Heater | SUS304 Stainless steel electric heat tube | |
| Power rating | 4.8kW | |
| Exhaust hole | Ф 35mm top (with function of test hole) | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | Measuring temperature display on upper LCD screen, setting temperature display on the lower row. | |
| Timer | 0-9999min (with timing wait function) | |
| Operation function | Fixed temperature operation, fixed timing operation, auto stop | |
| Additional function |
Sensor deviation correction,temperature overshoot self-tuning, internal parameter locking power-off parameter memory |
|
| Sensor | High Precision K type | |
| Safety device | Over Temperature sound-light alarm | |
| Specification | Inner Chamber size(W*L*H) | 500*500*600 mm |
| Exterior size (W*L*H) | 931*679*939 mm | |
| Volume | 150L | |
| Max. Shelf Number | 7 | |
| Load per rack | 15 kg | |
| Shelf space | 45 mm | |
| Current Rating(50/60HZ) | AC380V/7.3A | |
| Net Weight | 80 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories |
Spare shelf, Program controller |
|
