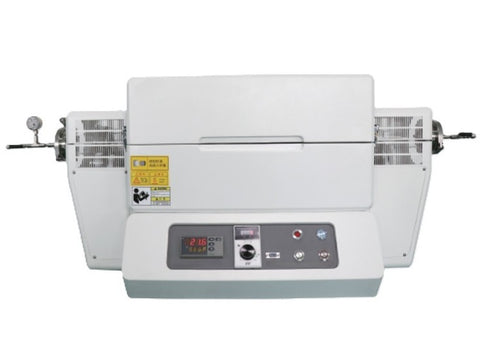

MSE PRO 1200°C Experimental Rotary Furnace

MSE PRO™ 1200°C Experimental Rotary Furnace

The MSE PRO™ 1200°C Experimental Rotary Furnace features an integrated control system and chamber design. Its chamber is constructed from high-purity alumina microcrystalline fiber, vacuum-formed at high temperatures for excellent insulation. Resistance wires serve as the heating elements, arranged parallel to and evenly around the quartz tube to ensure uniform heat distribution. The furnace incorporates a double-layer air-cooling system, maintaining the external surface temperature below 60 °C. A quartz tube runs through the entire vacuum chamber, sealed at both ends with stainless steel flanges, enabling operation under vacuum or controlled atmosphere. Rotary mechanisms at both ends drive the tube to rotate at a steady speed, ensuring uniform material mixing and promoting thorough reactions.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Product Features:

Product Features:

• The furnace adopts a double-layer air-cooling structure, keeping the outer shell temperature below 60 °C even at peak operating temperatures.

• Insulation is made from vacuum-formed inorganic alumina fiber material, offering excellent thermal insulation performance.

• The shell is treated with a powder-coated finish for enhanced corrosion resistance.

• The chamber uses high-purity alumina microcrystalline fiber, vacuum-formed at high temperatures, providing uniform heat distribution and energy savings of over 50%.

• Equipped with an emergency stop button and over-temperature alarm for enhanced safety.

• Compact benchtop design minimizes footprint and conserves lab space.

Technical Specifications:

We offer Compact Tube Furnaces with different sizes and T_max . For more information, please contact us.
