MSE PRO 12-Ton Bench Top Automatic Lab Press with Safety Cover (Ar Glovebox Compatible)

  • $ 3,59095
  • Save $ 43100

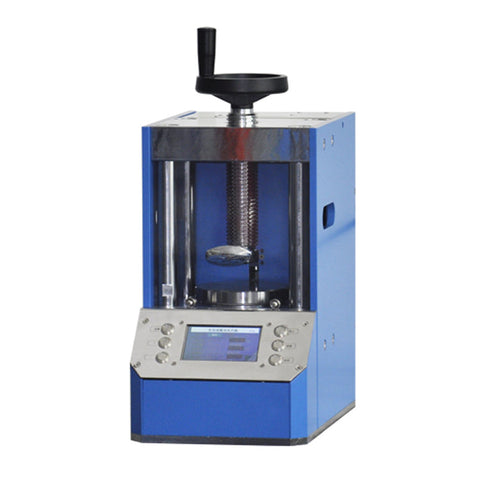

MSE PRO™ 12-Ton Bench Top Automatic Lab Press with Safety Cover (Ar Glovebox Compatible)

Compared with manual hydraulic press, this bench top automatic lab press offered by MSE Supplies can set and automatically hold the designated pressure for up to 999m59s. The upper and lower pressure values can be programmed and automatically controlled by the press itself. The pressure increase rate during pressing is also automatically controlled which will gradually reduces when approaching the designated pressure. With these features, this automatic lab press delivers better pressure control accuracy than manual hydraulic press. Its compact size is designed for glove box use. Automatic lab pellet presses are widely used to press powders for FTIR/XRF analysis, battery electrode materials, metallurgy, ceramic and catalysis applications.

At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars or agate mortar & pestle sets to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this automatic lab press for pellet pressing.

If you need other maximum pressure requirements or customized designs, please contact MSE Supplies.

If you use this press inside a glove box, please check the O-ring seal periodically to avoid oil leak.

    Product SKU # PR0342
    Pressure range 0-12T
    Pressure hold time 0-999m59s
    LCD display 4.3"
    Safety feature Plexiglass safety cover
    Sample stage travel distance (T) 30mm
    Working area (MxN) 110mm x 140mm
    Dimensions (LxWxH) 185mm x 230mm x 360mm
    Power supply 110V 60Hz
    Net weight 50kg

    Limited one year warranty, excluding damages caused by improper use. Please clean the press after each use to ensure the best performance and longer life time.
