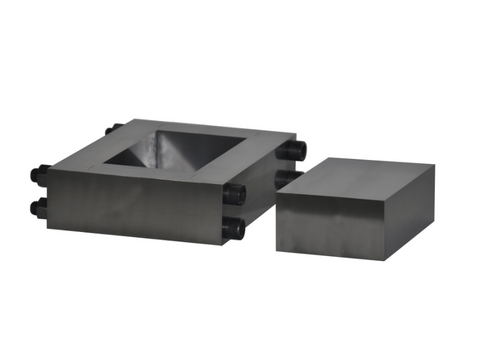

MSE PRO 100x100 mm Square Dry Pellet Pressing Die Set with Splice Structure

MSE PRO 100x100 mm Square Dry Pellet Pressing Die Set with Splice Structure

SKU: PR1026

  • $ 2,14295
  • Save $ 23700



MSE PRO™ 100x100 mm Square Dry Pellet Pressing Die Set with Splice Structure

The 100x100 mm square dry pellet pressing die set uses pressure to compress powder into cuboid pellet. The die is made from high quality, high hardness carbon steel, which ensures a successful compression of both ceramic and metal powders into pellet form.

Square Pressing Die Sets play a crucial role in mass production, allowing for efficient and uniform shaping of metal components. They are particularly valuable when producing square-shaped parts, holes, or indentations in metal sheets or plates, often used in industries such as automotive manufacturing, aerospace, electronics and construction.

In order to grind the desired materials into the correct granularity of powder (from millimeters to microns), we recommend using either our powder processing ball milling products & accessories or our agate mortar & pestle sets.

To avoid rust, store the pressing die set in a dry environment and clean after each use. If you do not intend to use for an extended period of time, it is recommended to apply some oil on the pressing die surfaces to avoid the formation of rust. MSE Supplies is not responsible for rust or damage caused by improper use. Please inspect the pressing die upon arrival. Pressing dies are considered consumables, the warranty only covers manufacturing defects.

Pressing die is considered as consumables which is not covered by warranty.

MSE Supplies offers both rectangular and square shape pressing die set. Customization is available upon request. Please contact us for more information.

Specifications:

SKU# PR1026
Sample width 100 mm
Die material Alloy tool steel: Cr12MoV
Indenter hardness HRC60-HRC62
Cavity depth (N) 65 mm
Average dimensions (L×H) 160×110 mm
Weight 21 Kg

    Note:
    For the sample length size more than 80 mm, we suggest design it with Splice structure to add the max. limited pressure it can bear.

    Sample shape:

    Diagram of press die:

    Pressing Die Set Pressing Force and Pressure Conversion

    Pressing Die Set Pressing Force and Pressure Conversion
