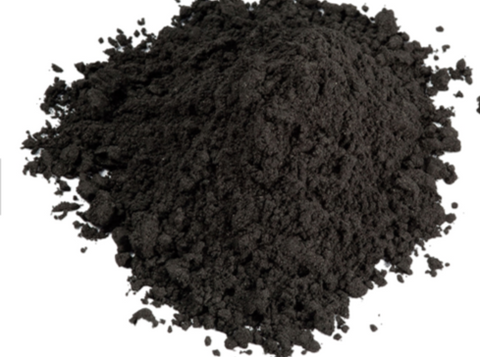

MSE PRO 100g Conductive Synthetic Graphite (TIMCAL TIMREX® KS15) Powder for Battery Research
SKU: PO5035
Product Details:
TIMCAL TIMREX® KS15 Synthetic Graphite is produced in a highly controlled graphitization process which assures narrow specifications and consistent quality. TIMCAL KS15 Graphite shows unique properties thanks to the combination of a consistent purity, perfect crystalline structure and well defined texture.
KS-15 graphite is widely used as a conductive additive for battery cathode and anode preparation. For example,
- Cathode: Cathode Active Material + KS15 (Conductive Additive) + PVDF + NMP
- Anode: Anode Active Material + KS15 (Conductive Additive)+ PVDF + NMP (or SBR + CMC)
TIMCAL KS15 Graphite is also used as an anti-corrosion and high-temperature lubricant, additive for conductive film, plastic and polymer, or a raw material for alloys and catalyst such as:
- Special alloys (Al, Mg, Ti)
- Hard metals (WC, TiC, Mixed Carbides)
- HSS (High Strength Steel)
- PIM/MIM (Powder Injection Molding, Metal Injection Molding)
- Fe-sintered engineering parts
SKU#: PO5035
Packing: 100g per bottle
Specifications
|
Appearance |
Black powder |
| Particle size, D50 | 8 um |
| Ash content | ≤0.05% |
| Moisture | ≤0.5% |
| Density (Scott) | 0.1 g/cm3 |
| BET specific surface area | 20 m2/g |
Please bake the powder in a vacuum oven at 120 - 150 °C before making slurry and coating to ensure best performance.
