100 pcs of Stainless Steel 316SS CR2016 Coin Cell Cases for Battery Research,  MSE Supplies

MSE PRO 100 pcs of Stainless Steel 316SS CR2016 Coin Cell Cases for Battery Research

  • $ 23500


Product Details:

The name of CR2016 is defined by International standard IEC 60086. The first letter, C, identifies the chemical composition “lithium” and a nominal voltage (3V) of battery. The second letter, R, indicates a round (cylindrical) form. The first two digits encode the outer diameter of battery in mm. The last two digits are the overall height of battery in tenths of mm. Therefore, CR2016 stands for “lithium, 20 mm diameter, 1.6 mm height”. Its thickness is half of CR2032.

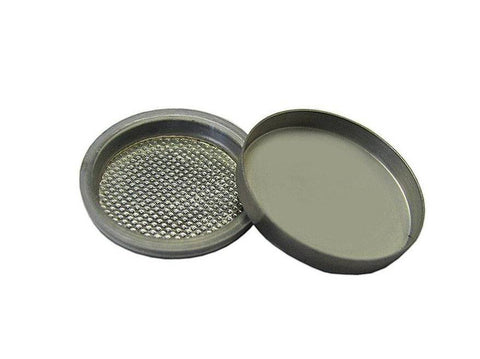

This product includes both anode and cathode cases. These CR2016 coin cell cases are made of stainless steel (316SS) with sealing O-ring (PP). 316SS has a better anti-corrosive resistance to the electrolyte compared with 304SS.

Specifications

Product SKU# BR0107
Pack Size 100 pcs per pack

Material

Grade 316 stainless steel (316SS)

Overall Dimensions
(Dia x Height)

CR2016 20mm x 1.6mm

Case Dimension

Cathode: O.D. = 20.0mm, I.D. = 19.4mm
Anode: O.D. = 19.3mm, I.D. = 16.9mm

Weight

0.1 oz (2.0 grams) each

Sealing Gasket

Polypropylene
