100 ml Agate High Energy Planetary Ball Mill Grinding Jar - MSE Supplies LLC

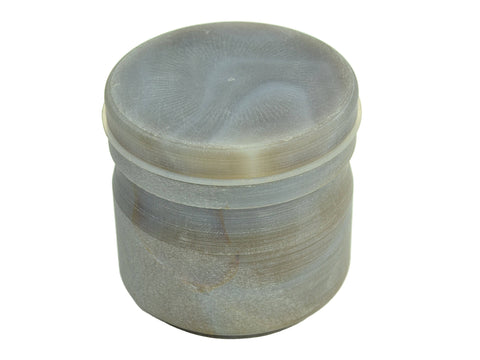

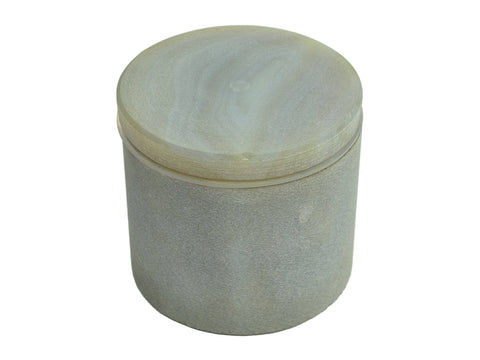

MSE PRO 100 ml Agate High Energy Planetary Ball Mill Grinding Jar

$ 449⁰⁰

Specifications for Agate Grinding Jars

Our milling/grinding jars are made of high purity natural agate (99.91% SiO₂).
They are not only wear-resistant but also chemical resistant to acids (except HF) and solvent.
They have been widely used with minimized contamination.

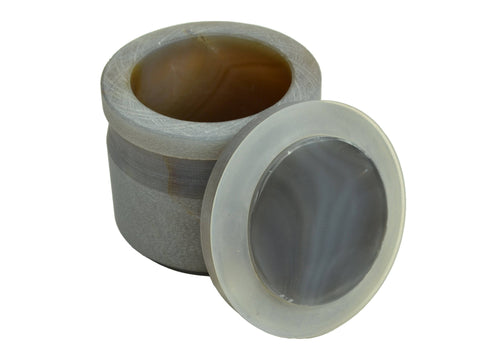

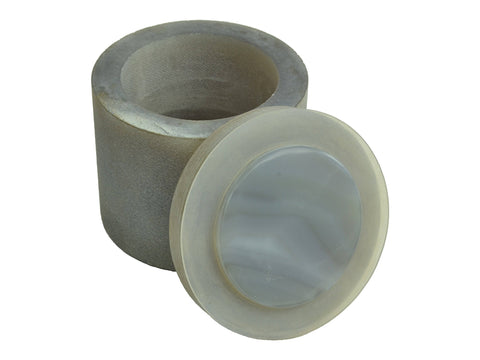

Each jar set includes grinding jar, lid, rubber sealing gasket.
Agate milling/grinding jars have been popularly used in the fields, such as ceramics, electronics, light industry, paint, ink, medicine, food, geology, mining, chemical engineering.

Agate Milling Jars for Planetary Mill Price
Product #	Volume (ml)	Price (USD)
JA0501	50	359
JA0502	100	449
JA0503	150	499
JA0505	250	649
JA0508	300	699
JA0506	400	899
JA0507	500	1199
JA0504	1000	1599

SKU # - JA0502

Volume - 100 ml

Shape - cylindrical, Outer diameter-75 mm, Inner diameter-52 mm, Height-73 mm

Did You Know?

A stainless steel sleeve can be added to convert to rotary mill (roller mill) application. please contact us for specific requirement.

Features of Agate Grinding Jars

High purity, low contamination to the samples
High cost-effective, low wear and long lifetime
High specific gravity, high grinding efficiency
Highly wear resistant to acid and solvent
Highly polished, smooth, easy to clean, low abrasion to the equipment
High mechanical strength, good toughness, impact resistance, no broken beads
Mainly used for lab planetary ball mill machines

Technical Data for Agate Grinding Jars

Model No.	JA0502
Main Material	SiO₂
Density	2.65 g/cm³
Jar Volume	100ml
Shape	cylindrical
Dimension	OD: 75mm ID: 52mm Height: 73mm
Ball Diameters	3mm~20mm
Hardness	6.5~7.0 Mohs
Suitable For	soft to medium-hard samples

Abrasion Resistance	good
Compatible Grinding Ball	mixed agate ball (3mm~20mm)

Element Analysis for Agate Grinding Jars

General Specifications
Main Material	agate -SiO₂

Chemical Composition
Element	Share %
Silicon Oxide -SiO₂	99.91
Aluminium Oxide -Al₂O₃	0.20
Iron Oxide -Fe₂O₃	0.01
Calcium Oxide -CaO	0.01
Magnesium -Mg	0.01
Sodium Carbonate -Na₂O	0.20
Potassium Carbonate -K₂O	0.01
Manganese Oxide -MnO	0.01

Physical and Mechanical Properties
Specific Gravity	2.65 g/cm
Hardness	6.5~7 Mohs

Choice of Grinding Jars & Balls

In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen. For example, 250ml agate ball mill jar, normally is matched with 250g mixed agate grinding balls. However, the size of grinding jars and grinding balls should be determined experimentally if necessary.
