MSE PRO 100 grams Silicon Carbide (SiC) Grinding Media Balls

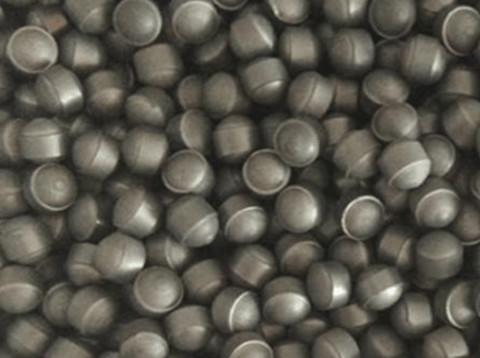

Silicon Carbide Grinding Media Balls
Silicon carbide grinding media ball has unique features such as high strength, good wear/corrosion/chemical resistance, light weight, low thermal expansion, high temperature resistance, electrical insulation and non-magnetic. It is perfect for grinding application which requires high temperature, high hardness and minimized contamination, such as semiconductor and electronic coating. Its high hardness can meet the vast majority of metal powder crushing and refining. They are extensively applied to in the fields of Metallurgy, Ceramics, Electronics, Light Industry, Paint, Medicine, Geology, Chemical Engineering and so on. Choose between 3 mm - 25 mm in size for the silicon carbide media.
General Description for Silicon Carbide Grinding Media
- Material: Silicon Carbide
- Surface treatment: Unpolished (Polished balls available)
- Ball diameters: 3mm/ 5mm/ 10mm/ 15mm/ 20mm/ 25mm (other sizes are available upon request)
- Package size: 100 grams/EA
- Density: 3.1 g/cm3
- Hardness: 85~90 HRC
- Grade: unpolished grade
- Abrasion resistance: Excellent
- Young's modules: 350 GPa
- RT bending strength: 400~500 MPa
- Maximum working temperature: 1300 ℃
- Kic fracture toughness: 3.0~4.0 MPa∙m^1/2
- Modulus of elasticity: 300~320 GPa
- Coefficient of thermal expansion: 4.0 10^-6 /℃
- Suitable for: Hard, abrasive samples
- Compatible grinding jars: Silicon carbide, Nylon, Teflon (PTFE) Jar. Other jars can be used with caution to minimize abrasion and wear.
