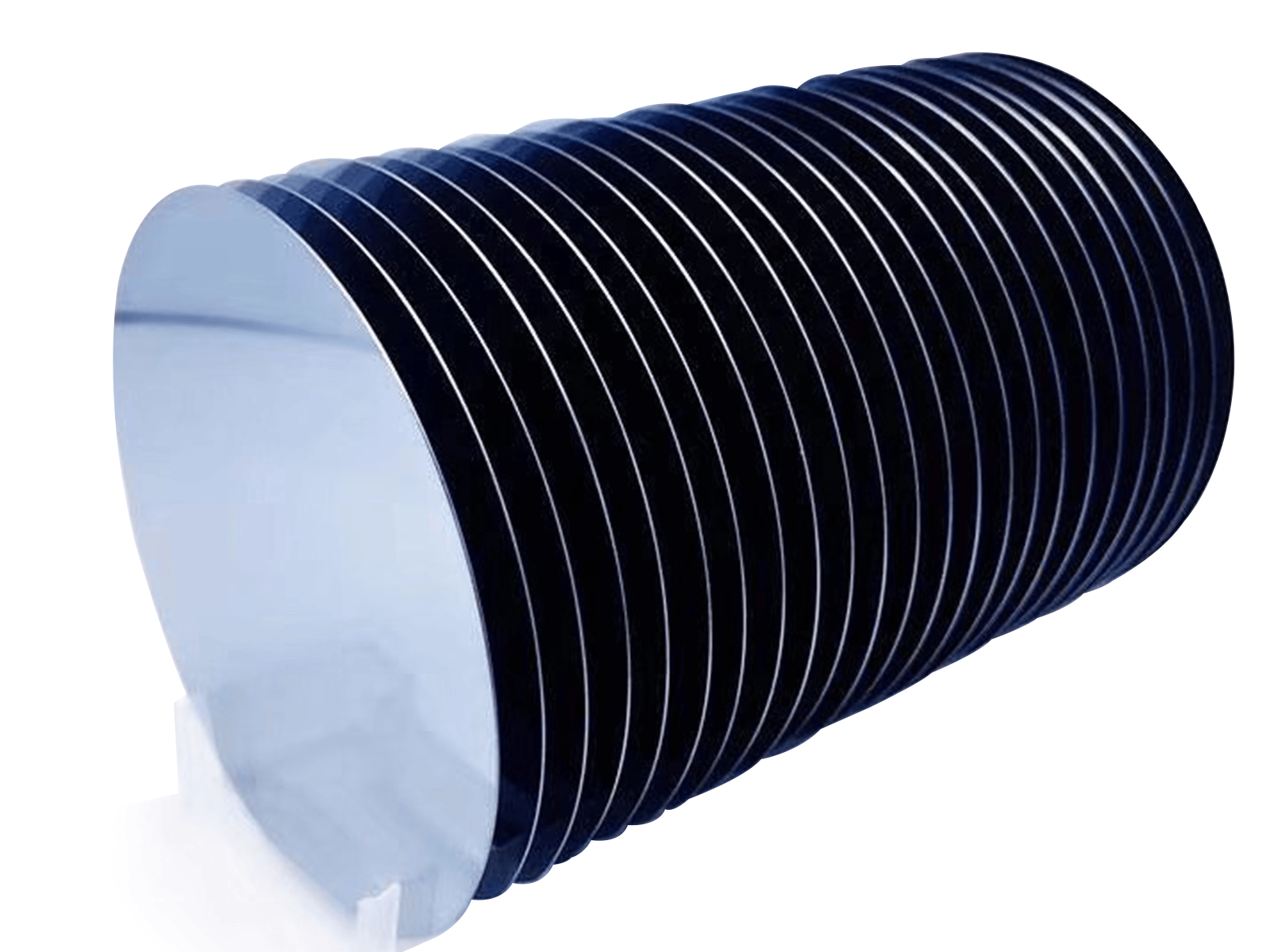

MSE PRO 1 Cassette (qty. 25) of 100 mm P Type (B-doped) Prime Grade Silicon Wafer <100>, SSP, 10-20 ohm-cm - MSE Supplies LLC

MSE PRO 1 Cassette (qty. 25) of 100 mm P Type (B-doped) Prime Grade Silicon Wafer <100>, SSP, 10-20 ohm-cm

SKU: WA0806

  • $ 49795
  • Save $ 6000



1 Cassette (qty. 25) of 100 mm P Type (B-doped) SEMI Standard Prime Grade Silicon Wafer <100>, 10-20 ohm-cm, Single Side Polished, 4 inch Si Wafer

Product SKU#: WA0806

Product Specifications

  • Material: Single Crystal Silicon Wafer
  • Growth Method: MCZ
  • Orientation: <100>
  • Diameter: 100 mm +/- 0.5 mm
  • Thickness: 525 um +/- 25 um (SSP)
  • Primary Flat Orientation: <110> +/-1 deg
  • Primary Flat Length: 32.5 +/- 2.5 mm
  • Secondary Flat Orientation: 90 deg from primary flat
  • Secondary Flat Length: 18.0 +/- 2.0 mm
  • Type/ Dopant: P/ Boron
  • Thermal Expansion Coefficient: 2.6·10-6°C -1
  • Electrical Resistivity: 10-20 ohm-cm
  • RRV: 8% (6mm)
  • Oxygen Content: 1.6 x 10^18 atoms/cm3
  • Carbon Content: 0.5 ppm
  • GBIR/ TTV: 5 µm
  • WARP: 30 µm
  • BOW: 30 µm
  • Front Surface: CMP Polished, Ra < 0.5 nm (single side polished, SSP)
  • Package: Packaged in a class 100 clean room environment, in cassettes of 25 wafers.
