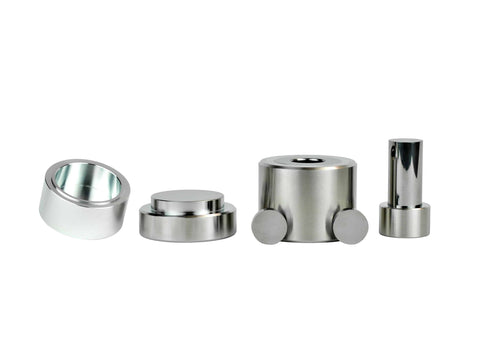

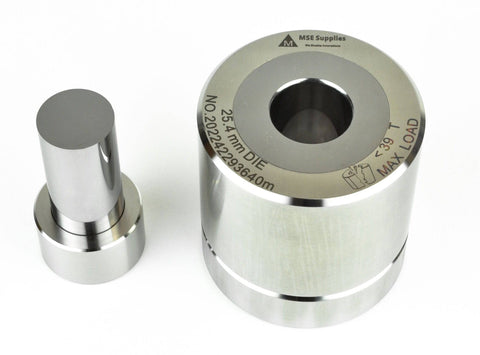

MSE PRO 1" (25.4 mm) Diameter Tungsten Carbide Dry Pellet Pressing Die Set
1" (25.4 mm) Diameter Tungsten Carbide Dry Pellet Pressing Die Set
The 1" (25.4 mm) diameter dry pellet pressing die set uses pressure to compress powder into 1" pellets. The die is made from high quality, high hardness, corrosion resistant and wear resistant tungsten carbide, which ensures a successful compression of both ceramic and metal powders into pellet form. Common uses for tungsten carbide dry pellet pressing dies include making laboratory pellets in minerals, ceramics, pharmaceutical or analytical sample preparations.
In order to grind the desired materials into the correct granularity of powder (from millimeters to microns), we recommend using either our powder processing ball milling products & accessories or our agate mortar & pestle sets.
We offer customization service on pressing die sets. Please contact us at email@example.com to discuss.
- Product #: PR0163
- Core Diameter (ID): 1" (25.4 mm)
- Core Depth: 45 mm
- Pressing Force: maximum 39 metric Ton
- Pressing Pressure: Less than 800 MPa (116 kPSI) is recommended, maximum 1200 MPa (174 kPSI)
- Rockwell Hardness: Rc > 85
- Material: Tungsten carbide
Pressing Die Set Pressing Force and Pressure Conversion
