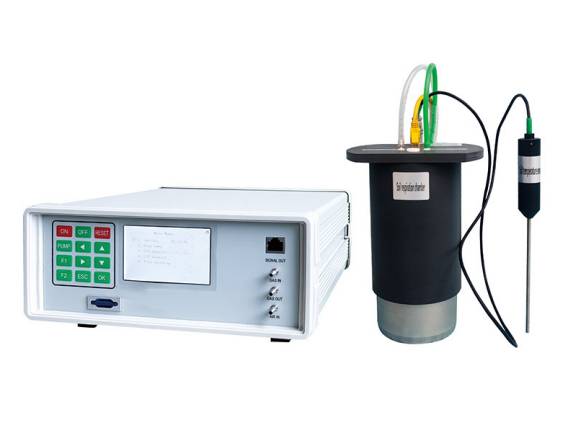

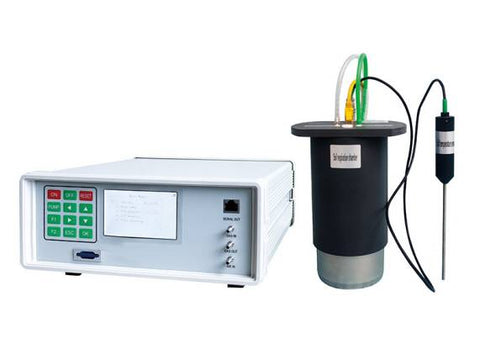

MSE PRO 0~5000ppm Soil Respiration Meter
SKU: BB2690
MSE PRO™ 0~5000ppm Soil Respiration Meter
The MSE PRO Soil Respiration Meter is a high-performance analytical device designed to measure soil CO₂ flux and assess carbon cycling in terrestrial ecosystems. It simultaneously records CO₂ concentration, soil and air temperature, humidity, photosynthetic radiation, and gas flow in real time. Built for field durability and scientific precision, this portable meter helps researchers and agronomists monitor biological activity and evaluate carbon dynamics with accuracy and ease.
- Multi-Parameter Data Collection: Collects CO₂ concentration, soil and air temperature, humidity, light intensity, and gas flow all at once for comprehensive environmental analysis.
- Large Storage & Export Capability: Features a high-capacity SD card for data storage, with simple export options for further analysis.
- User-Friendly Interface: Equipped with an intuitive LCD screen and simple operating system for easy use in field conditions.
- Reliable Power & Long Operation Time: Includes a maintenance-free lithium battery offering over 10 hours of continuous use, with both AC and DC power compatibility.
- Flexible Field Applications: Compatible with various chamber types for testing soil, fruits, seeds, plants, and more-ideal for agricultural and ecological studies.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Soil Respiration Meters. Please contact us for more information.
Specifications:
| SKU# | BB2690 |
| Carbon Dioxide Detection | Infrared carbon dioxide detection module |
| Measurement range: 0-5000ppm | |
| Linearity: ≤± 1% F.S | |
| Repeatability: ≤± 1% | |
| Response time: ≤ 15s | |
| Zero drift: ≤± 2% f.s/24h | |
| End drift: ≤± 2% f.s/24h | |
| Soil Temperature Detection | Micro fast response PT100 platinum resistance |
| Measurement range: 0-60 °C | |
| Resolution: 0.1 °C | |
| Accuracy: ± 0.3 °C | |
| Air Temperature Detection | Inlet temperature detection module |
| Measurement range: - 20-95 °C | |
| Resolution: 0.1 °C | |
| Accuracy: ± 0.2 °C | |
| Air Humidity Detection | Inlet humidity detection module |
| Measurement range: 0~100% | |
| Resolution: 0.1% | |
| Accuracy: ± 1.8% | |
| Light Detection | Silicon photocell with correction filter, response spectrum 400nm-700nm |
| Measurement range: 0-3000umol / m2 / s.' | |
| Resolution: 1umol / m2/ s.' | |
| Accuracy ± 5% umol /m2/ S.' | |
| Flow Detection | Microelectronic flow meter |
| Measurement range: 0-1.5l/m | |
| Resolution: 0.01l/min | |
| Accuracy: ± 2% | |
| Soil Respirator | Volume 1.0L |
| Storage | Storage mode: 2GB memory card storage |
| Storage format: TXT document | |
| Working Power Supply | Battery: 8.4V lithium battery; Power Adapter:100-240V |
