Metkon Electrolytic Polishing & Etching System ELOPREP 102

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

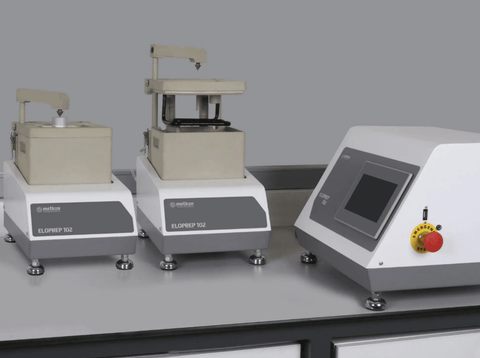

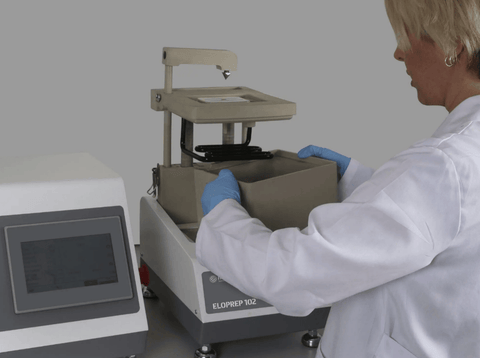

MSE Supplies offers an Electrolytic Polishing & Etching System ELOPREP 102 from Metkon Instrument Inc. ELOPREP 102 is an automatic and programmable electrolytic polishing and etching equipment for the preparation of metallographic specimens. It is designed for the last step of polishing after fine grinding and can reduce the sample preparation time compared to mechanical polishing. It is perfect for steel but can also be used to prepare other metallic materials. By adjusting the electrolyte and parameters, it can also be used to etch polished samples before microscope examination. With the scanning function of ELOPREP, the correct voltage of polishing as well as etching can be defined automatically. ELOPREP 102 is suitable for both normal and low temperatures electrolytic polishing. The water connection and circulation system are specially designed for both purposes. The polishing & etching unit can be connected to either city water for normal polishing or an external cooling unit for low temperature polishing at subzero temperatures. No separate or additional equipment is necessary for this purpose. Additional polishing and etching units can be connected to the same control unit. Thus, two polishing & etching units can be operated individually. This is an extremely useful feature, especially for specimens that require different electrolytes for polishing and etching.

Country of Origin: Made in Turkey

Manufacturer: Metkon Instruments Inc.

Main Features:

  • Fully automatic electrolytic polisher/etcher
  • Programmable with HMI touch screen controls
  • Automatic determination of polishing and etching voltage
  • Fast & effective polishing results
  • Highest safety standards
  • Ability to operate two Polishing & Etching unit from the same control unit
  • Suitable for both normal and low temperature electrolytic polishing
  • Short polishing times and maximum reproducibility
  • Optional external etching unit
  • Variable polishing time and current
  • Variable speed controlled pump with magnetic stirrer for electrolyte flow
For more details of the Electrolytic Polishing & Etching System ELOPREP 102, click here.

    Technical Specifications

    MODEL NO ELOPREP 102
    Temperature limiter, (oC) 30 - 50
    Pump Magnetic Stirrer
    Electrolytic Container Volume, (mL) 1000
    External Etching Volume, (mL) 1200
    Cooling System Integrated
    Low Temperature Polishing Yes
    Mask Dimensions, (cm2) 0/0.5/1/2 /5
    Scanning Function Automatic

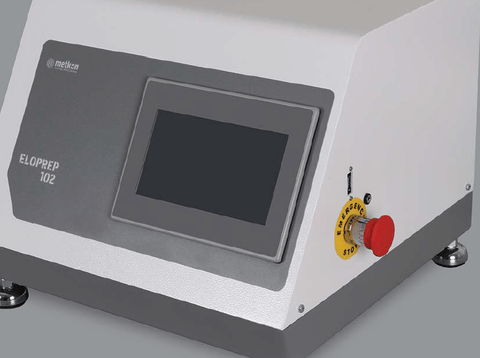

    Control Panel 7" HMI Touch Screen
    Program Memory 99
    Output Voltage for Polishing, (V) 0-120
    Output Voltage for Etching, (V) 0-25
    Output Voltage for External Etching, (V) 0-25
    Power Supply Single phase 110/120 V as standard
    Single phase 230 V as option
    Dimensions of Control Unit, WxDxH, (mm) 404 x 370 x 305
    Dimensions of Polishing Unit, WxDxH, (mm) 210 x 370 x 305
    Weight of Control Unit, (kg) 20
    Weight of Polishing Unit, (kg) 5

    Accessories:

    • Additional Polishing & Etching Unit (Suitable for both normal and low temperature electrolytic polishing)(Dual Polishing & Etching units operatable by the same control unit)

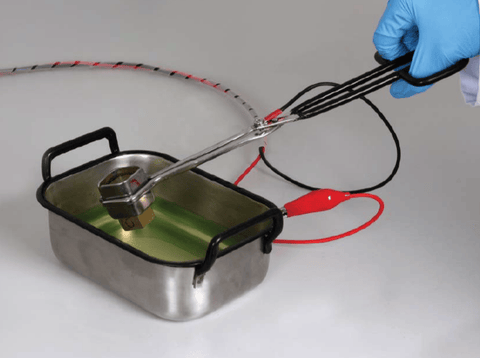

    • External Etching unit
    • Electrolyte container with lid
    • 1 set of 5 masks 0.5 cm2
    • 1 set of 5 masks 1 cm2
    • 1 set of 5 masks 2 cm2
    • 1 set of 5 masks 5 cm2
    • 1 set of 5 masks without aperture
    • 1 set of masks (0.5, 1, 2, 5 cm2 and 1 without aperture.)
    • Stainless Steel cathode
    • Copper cathode
    • Titanium cathode
    • Water Filtering and Pressure Regulator System for city water inlet
    • Spare Siliphos Cartridge Filter

      For accessories please contact us so we can help you choose appropriate products for your needs


      About Metkon: Since 1993, METKON as a young and dynamic company, has delivered more than 20,000 instruments globally. Metkon provides innovative Sample Preparation and Testing Instruments and Consumables for Materials and Microstructure Analysis. It offers expertise and know-how to our customers worldwide to enable them to reach the "True and Excellent Sample".

      MSE Supplies is an authorized distributor for Metkon Instrument Inc.
