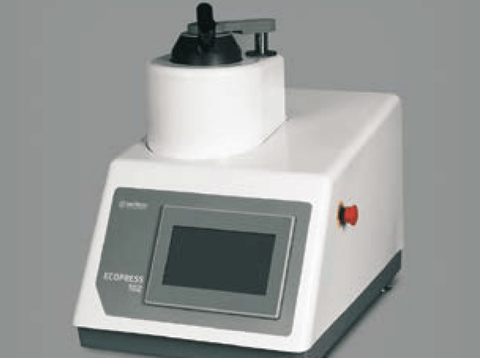

Metkon Automatic Mounting Press ECOPRESS 102/202

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

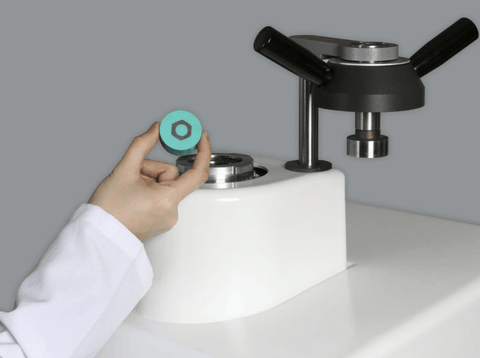

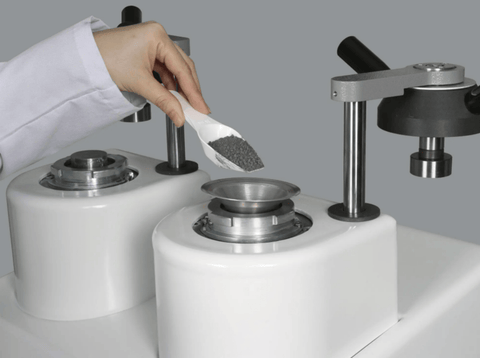

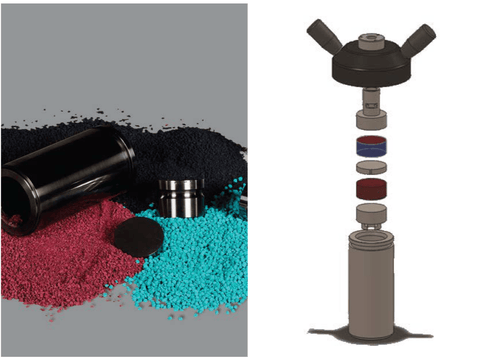

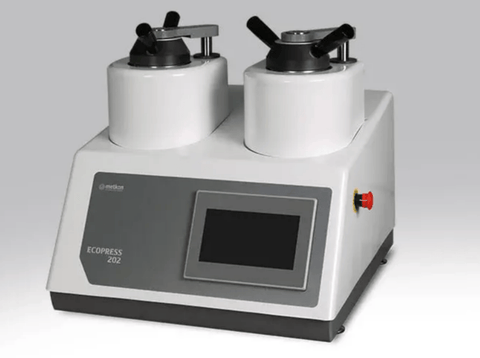

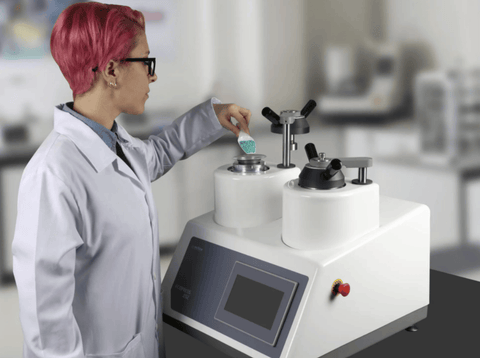

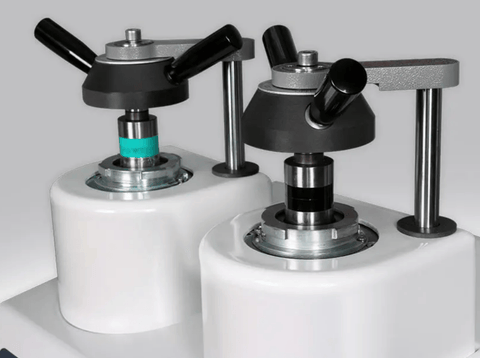

MSE Supplies offers Automatic Mounting Presses ECOPRESS 102/202 from Metkon Instrument Inc. After cutting the specimen the next step is mounting. The purpose of mounting is to handle small or odd-shaped specimens, provide good edge retention and protect fragile materials, thin layers, or coatings during preparation. Mounting produces specimens with uniform size makes it easier to handle in automatic holders for further preparation steps. Metallographic specimens are typically "mounted" using a hot compression thermosetting resin. A typical mounting cycle will compress the specimen and mounting media and heat to a temperature. ECOPRESS 102/202 are high capacity, state of the art automatic mounting presses having advanced software with programmable colored HMI touch screen controls. Robust bayonet closure allows for quick and safe operation. Two mounts can be produced simultaneously with the use of an intermediate ram by ECOPRESS 102. ECOPRESS 202, available with dual cylinder, can produce four mounts at a time offering a perfect solution for labs with high specimen throughput.

Country of Origin: Made in Turkey

Manufacturer: Metkon Instruments Inc.

Main Features:

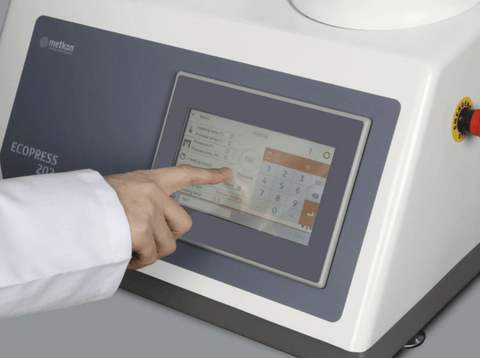

  • 7" HMI touch screen control
  • Siemens PLC control unit
  • Programmable with colored LCD display
  • Program based mounting sequences
  • Electro hydraulic pressure (requires no air)
  • Pressure up to 300 bar
  • Temperature up to 200 0C
  • Operation time up to 35:00 minutes
  • Short cycle time

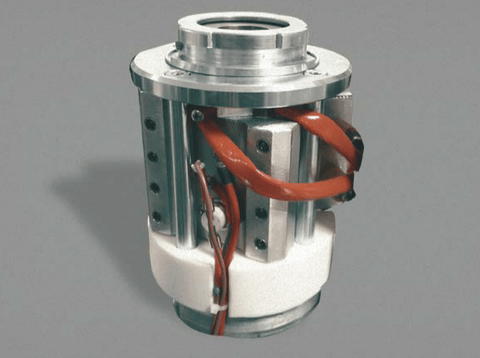

  • Thermostatically controlled heating power of 1650 W
  • Automatic cooling cycle with three modes of cooling rates (standard cooling, slow cooling and based on time)
  • Programmable preheating and preloading
  • Stand-by temperature
  • Selectable mould sizes from 25 mm to 50 mm

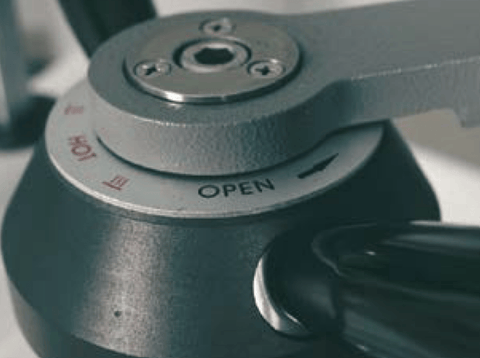

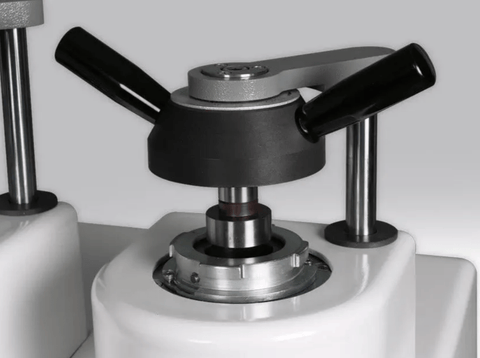

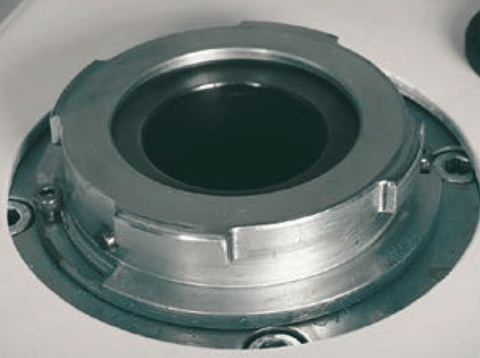

  • Easy to close bayonet closure
  • Audible warning signal
  • Ready for operation
  • Includes a standard set of mounting consumables composed of
    3 different hot mounting compounds: 1 kg of each and a total of 3 kg
For more details of the ECOPRESS 102/202 Automatic Mounting Presses , click here.

    Technical Specifications

    MODEL NO ECOPRESS 102 ECOPRESS 202
    Max. Pressure, (bar) 300 300
    Max. Temperature, (°C) 200 200
    Heating Power, (W) 1650 2 x 1650
    Water Cooling Yes Yes
    Slow Cooling Yes Yes
    Operation Programmable/Hydraulic Programmable/Hydraulic
    Display 7” HMI touch screen LCD 7” HMI touch screen LCD
    Mould Assembly, (mm) 25-50 25-50
    Size W x D x H, (cm) 36 x 55 x 48 49 x 55 x 48
    Weight, (kg) 38 54
    Power Supply  1 phase, 230V, 50Hz. AC 1 phase, 230V, 50Hz. AC

    Accessories:

    • Mould Assemblies
    • Spare Part Kit
    • Other Accessories

    Consumables:

    • Hot Mounting Powder

        For accessories and consumables, please contact us so we can help you choose the appropriate products for your needs.


        About Metkon: Since 1993, METKON as a young and dynamic company, had delivered more than 20,000 instruments globally. Metkon provides innovative Sample Preparation and Testing Instruments and Consumables for Materials and Microstructure Analysis. It offers expertise and know-how to our customers worldwide to enable them reach the "True and Excellent Sample".

        MSE Supplies is an authorized distributor for Metkon Instrument Inc.
