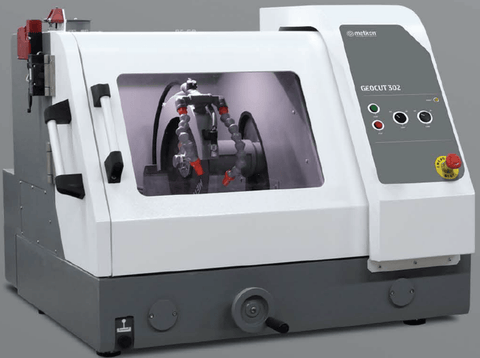

Metkon Advanced Geological Cutting Machine GEOCUT 302
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
MSE Supplies offers an Advanced Geological Cutting Machine GEOCUT 302 from Metkon Instrument Inc. GEOCUT 302 is specially designed for cutting large and irregular shaped petrographic specimens. It offers the advantage of combining different cutting techniques and methods into the same machine to obtain superior cut surfaces for a broad range of heavy duty cutting applications. GEOCUT 302 has a robust and reliable design with low noise and emission levels. The modern and sturdy design with powerful 4 kW cutting motor ensures fast and efficient cutting through the hardest and complex materials with precise axis controls. It is ideal for sectioning of rocks, ceramics, minerals, glass, concrete and geological specimens.
Country of Origin: Made in Turkey
Manufacturer: Metkon Instruments Inc.
- For sectioning of rock, ceramics, minerals, glass, concrete etc.
- With Z-axis cutting wheel positioning and table-feed cutting system
- Manual positioning of the specimen in X and Y axis
- X-Y table bed and cross feed table for cutting of plane parallel sections

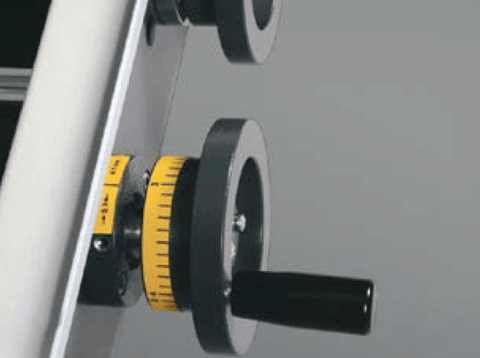

- Mechanical display of cutting thickness
- Twin T-slotted clamping table made of stainless steel
- Bottom part as rugged alloy base casting
- Cutting capacity up to 110/90 mm solid stock
- For diamond wheels up to ø300/250mm
- 6.4 HP compact cutting motor
- Electronic brake system
- Extraordinary access for easy handling with sliding door and side openings
- Interlocking safety switch for sliding door
- Ability to connect directly city water or recirculating coolant tank
- Ready for operation
|Max. Wheel Diameter, (mm)||Ø300|
|Max. Cutting Capacity, (mm)||Ø110|
|Max. Cutting Capacity, HxD(mm)||70x200|
|Z-Axis Travel, (mm)||125|
|Y-Axis Travel, (mm)||220|
|X-Axis Travel, (mm)||95|
|T-Table Dimension, (mm)||(395+95)x275|
|T-Slot Dimension, (mm)||12|
|Cutting Motor Power (S1), (kW)||4|
|Wheel Speed, (RPM)||2800|
|Chop Cutting, Z- Axis||Manual|
|Table Feed Cutting, Y-Axis||Manual|
|Parallel Cutting, X-Axis||Manual|
|Size WxDxH, (cm)||90x94x66.5|
|Power Supply||400 V, 3 phase, 50/60 Hz|
- Cooling Systems
- Power Supply Transformer kit for 200-240 VAC, 3 phase, 50/60 Hz

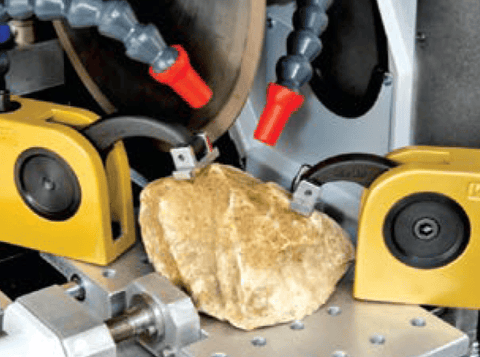

- Clamping Devices
- Spare Part Kit

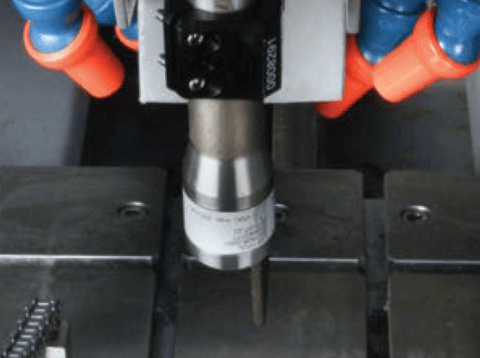

- Laser Alignment Unit

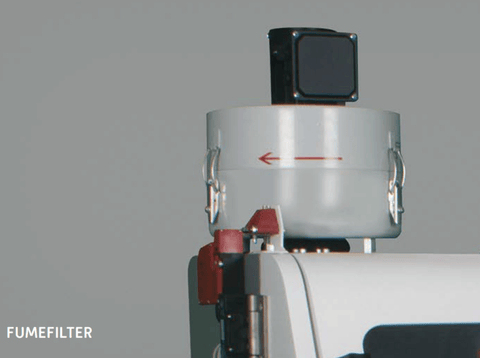

- Fume Filter
- Other Accessories
- Diamond Cutting Discs for GEOCUT 302
For accessories and consumables, please contact us so we can help you choose appropriate products for your needs
About Metkon: Since 1993, METKON as a young and dynamic company, had delivered more than 20,000 instruments globally. Metkon provides innovative Sample Preparation and Testing Instruments and Consumables for Materials and Microstructure Analysis. It offers expertise and know-how to our customers worldwide to enable them to reach the "True and Excellent Sample".
MSE Supplies is an authorized distributor for Metkon Instrument Inc.
