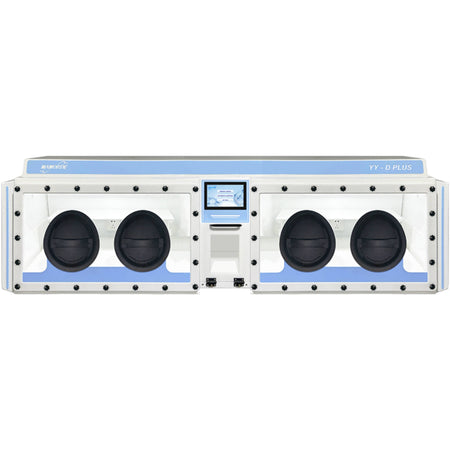

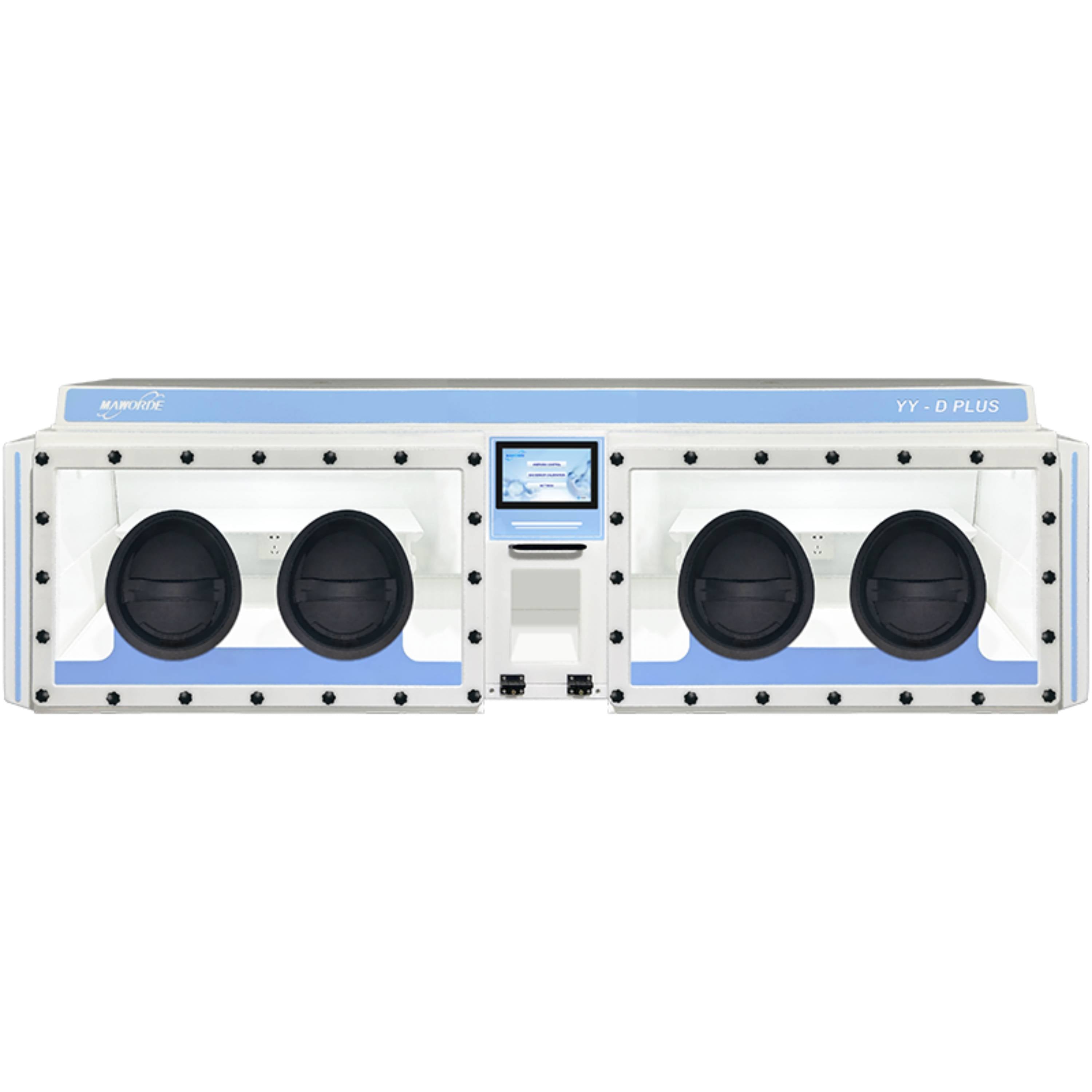

MAWORDE Dual Anaerobic Workstation with Oxygen & Pressure Dual Control YY-D Plus

MAWORDE Dual Anaerobic Workstation with Oxygen & Pressure Dual Control YY-D Plus

The YY-D Plus is a dual anaerobic workstation with individual control, featuring control of oxygen and pressure for precise anaerobic regulation. Designed to optimize space without compromising performance, it is ideal for routine individual anaerobic cultivation and standard laboratory workflows.

Key Specification:

Our workstation ensures precise, reliable culture conditions with:

• O₂ Monitoring Range: 0.0% – 25%, in 0.1% increments
• Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
• Humidity Control: Room humidity to 85%
• Pressure Range: 0.00 – 0.50 kPa, in 0.01kPa increments

Dual Oxygen & Pressure Control System

• Oxygen control accuracy down to 0.1% and pressure control accuracy down to 0.01 kPa
• Real-time monitoring and data recording with intelligent automatic regulation to maintain a stable experimental environment
• Provides reproducible and traceable anaerobic conditions for demanding applications such as microbial culture and manipulation

Seamless Entry System (SES)

• Rapid sleeve evacuation establishes an anaerobic barrier within 12 seconds
• Maintains continuous and stable anaerobic conditions during routine operation
• 90° quick-open ports enable intuitive handling and improved internal space utilization
• Flexible operation modes adapt to different workflows and user habits

Advanced Gas Circulation Design

• Optimized airflow and circulation paths ensure uniform temperature, humidity, and gas concentration distribution
• High-performance axial fans enable rapid gas exchange and even diffusion for long-term culture stability
• Integrated bent-panel construction with anti-condensation viewing window technology ensures clear visibility and enhanced durability

HEPA Filtration & Pressure Safety Protection

• Integrated H14 HEPA filter (optional U16) effectively protects samples from particulate contamination
• High-response pressure relief valve precisely manages sudden pressure fluctuations, ensuring system and operator safety
• Built-in pressure-stabilizing water/oil reservoir buffers continuous pressure changes, maintaining a stable experimental environment

Intelligent Safety Protection

• Automatic alarm for low gas cylinder pressure
• Real-time chamber pressure monitoring
• Automatic leak detection with alarm and reduced gas intake frequency
• Optional real-time H₂ concentration monitoring module
• Intelligent dual locking system with auto-lock and one-touch manual lock

Specifications:

Options:

• HEPA Filtration System: High-efficiency HEPA filtration for particulate contamination control
• Cable Port: Integrated cable access for internal equipment connection
• H2 Monitoring with Alarm System: Real-time hydrogen concentration monitoring with audible and visual alarms
• CO₂ Control Module: CO₂ monitoring and control for specialized culture applications
• <5 ppm Oxygen Control: Ultra-low oxygen control capability below 5 ppm
• Sidewall Pipette Holder: Integrated sidewall-mounted pipette holder
• Single Plate Entry System (SPES): Rapid single-plate transfer system
• High Temperature Chamber: Provides controlled high-temperature environments (up to 55°C) for experiments
• Cooling System: Enables low-temperature conditions for specialized experiments
• Microaerophilic System: Combined hypoxic and anaerobic operation in one workstation
• Additional Options Shown Below

Optional Features:

Product Dimensions:
