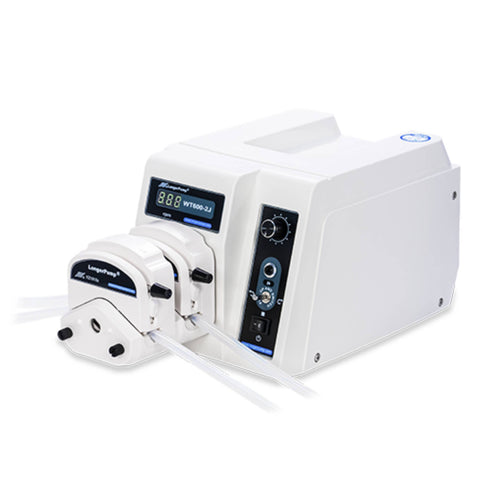

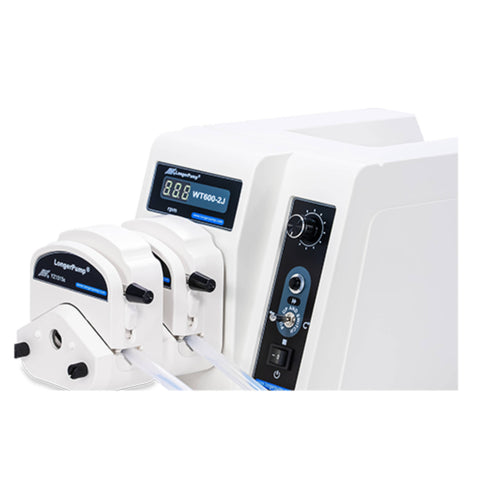

LONGER WT600-2J High-Flow Range Peristaltic Pump
SKU: WT600-2J_YZ1515X-A/C
LONGER WT600-2J High-Flow Range Peristaltic Pump
WT600-2J is used in laboratory and smaller batch production. It adopts DC brushless motor to drive multi pump head. The pump delivers flow rates from 4.2 to 6000ml/min. The pump could be controlled manually or through footswitch, external control interface and RS485 communication interface. Store the running parameter automatically. Easy to operate and intuitive display. CE certification.
Product Features
- WT600-2J is used in laboratory and smaller batch production.
- It adopts DC brushless motor to drive multi pump head as 4*YZ1515x. 4*YZII15, 4*YZ2515x, 2*YZII25 and 2*KZ25.
- The pump delivers flow rates from 4.2 to 6000ml/min.
- The pump could be controlled through rotate knob, footswitch, external control interface and RS485 communication interface.
- Store the running parameter automatically. Easy to operate and intuitive display.
- CE certification.
Product Parameters
|
Parameters |
WT600-2J |
|
Max Flow Rate (Single Channel) |
6000ml/min |
|
Speed Range |
60-600(rpm) CW/CCW |
|
Speed Resolution |
1rpm |
|
Display |
3-digit LED display for current speed |
|
Work Mode |
Continuous mode |
|
Calibration |
N/A |
|
External Control |
start/stop; running direction; speed |
|
Communication Control |
RS485 |
|
Dimensions(L x W x H) |
285×207×180mm |
|
Power Supply |
AC 220V±20%/200W or AC 110V±20%/200W 50/60Hz |
|
Operating Temperature |
0℃-40℃ |
|
Relative Humidity |
＜80% |
|
IP Rating |
IP31 |
|
Weight |
5.2Kg |
Technical Specifications
|
Speed |
60rpm-600rpm,CW/CCW. |
|
Speed Resolution |
1rpm |
|
Speed Accuracy |
≤±1% |
|
Control mode |
Control panel, external signal control and |
|
Display |
3-digit LED display for current speed |
|
External control |
Start/stop,direction and speed control (4-20mA, |
|
Communication Interface |
RS485 |
|
Power-off memory |
Return to previous status when powered on |
|
Prime |
For fast filling and emptying at full speed |
|
Dimension (LxWxH) |
285x207x180(mm) |
|
Power supply |
AC220V±20%/200W or AC 110V±20%/200W |
|
Operating temperature |
0 to 40℃ |
|
Relative humidity |
<80% |
|
IP rating |
IP31 |
|
Weight |
5.2kg |
Acceptable Pump Heads and Tubing
|
Pump Drive |
Pump Head |
Tubing |
Flow Range (mL/min) |
Weight (kg) |
|
WT600-2J |
(1, 2, 3, 4)× |
13#, 14#, 19#, 16#, |
4-2200 (Single Channel) |
5.6-6.8 |
|
(1, 2, 3, 4)× YZ II |
13#, 14#, 19#, 16#, |
4-2200 (Single Channel) |
5.6-6.8 |
|
|
(1, 2, 3, 4)× |
15#, 24# |
100-1600 (Single Channel) |
5.6-6.8 |
|
|
(1, 2) × YZ II 25 |
15#, 24#, 35#, 36# |
100-3000 (Single Channel) |
5.6-6.0 |
|
|
DG15-24 |
16#, 25#,17# |
50-1800 (Single Channel) |
6 |
|
|
(1, 2) × KZ 25 |
15#, 24#, 35#, 36# |
200-6000 (Single Channel) |
6.0-6.8 |
