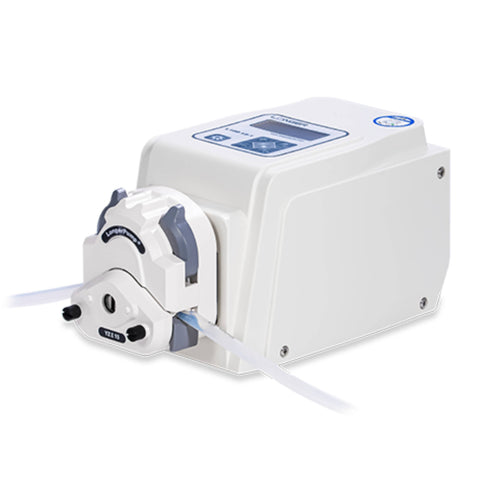

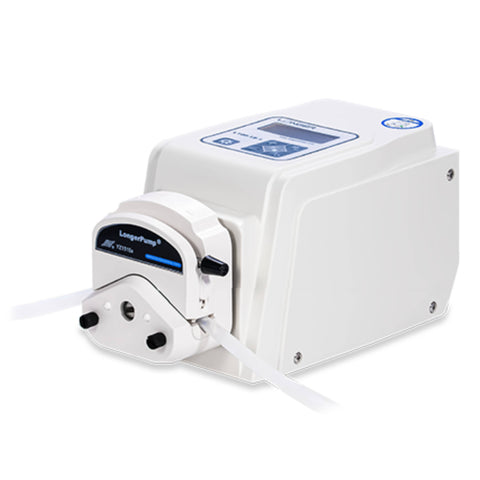

LONGER L100-1S-2 Peristaltic Pump for Lab and Lightindustry
SKU: L100-1S-2_YZ1515X-A/C
LONGER L100-1S-2 Peristaltic Pump for Lab and Lightindustry
L100-1S-2 is designed for laboratory and light industry application. It has flow rate display, calibration function and high speed resolution( 0.01rpm and speed ratio 10000:1)which provides high precision flow rate and wide adjusting range.
Product Features
- L100-1S-2 is designed for laboratory and light industry application.
- It has flow rate display, calibration function and high speed resolution( 0.01rpm and speed ratio 10000:1）which provides high precision flow rate and wide adjusting range.
- Acceptable pump head are YZ1515x,YZII15,FG15,BZ15,DMD15,DG15-24,DG15-28,YZ2515x,YZII25,FG25,BZ25,DG-1,DG-2.DG-4,DG-6 and DG-8.
- The pump delivers flow rates from 0.00015 to 500ml/min.
- The speed could be adjusted manually or automatically through external control interface.
- CE certification.
Product Parameters
|
Parameters |
L100-1S-2 |
|
Max. flow rate(Single Channel) |
500mL/min |
|
Pump speed |
0.01rpm-100rpm, CW/CCW |
|
Speed resolution |
0.01 rpm for speed<10 rpm; 0.1 rpm for speed >10 rpm |
|
Display |

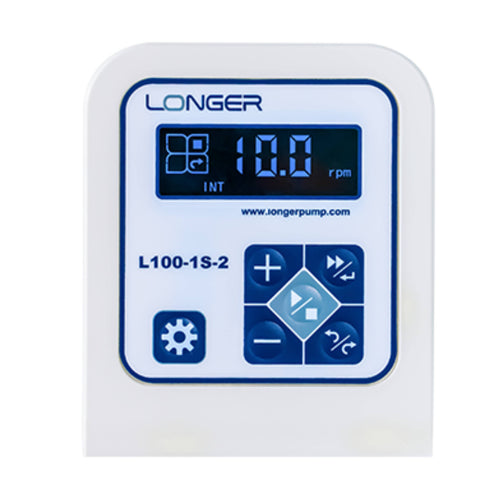

LCD for speed, flow rate and other parameters |
|
Work mode |
Continuous mode; Time mode |
|
Control mode |
Keypad control; Footswitch control; External control; Communication control |
|
Calibration function |
Flow rate calibration |
|
External control |
Control function: start/stop, running direction, speed |
|
Communication control |
RS485 |
|
Dimensions (L x W x H) |
232x142x149(mm) |
|
Power supply |
AC100V～240V/25W, 50/60Hz |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
relative humidity＜80% |
|
IP rating |
IP31 |
|
Weight |
2.38kg |
Technical Specifications
|
Speed |
0.01rpm-100rpm, CW/CCW |
|
Speed resolution |
0.01rpm resolution within the speed of 0.01rpm-10rpm |
|
Display |
LCD |
|
Control mode |
Keypad control, external signal control and communication control |
|
Work mode |
Speed control mode and flow rate mode |
|
Flow rate mode |
Flow rate is displayed and the pump runs continuously at the set flow rate |
|
Flow rate calibration |
Improve the flow rate accuracy |
|
Flow rate setting range |
0.01μL/min-999L/min, unit could be set as μL/min, mL/min or L/min |
|
External control |
Start/stop control (switch signal), direction control (switch signal), speed control (0-5V, 0-10V, 0-10rpm in 0.01rpm resolution, from 10-100rpm in 0.1rpm resolution) |
|
Communication control |
RS485 interface, Longer protocol or Modbus protocol, the communication parameters |
|
Timing function |
Set the running time (13 options), the pump can run/stop automatically |
|
Parameter memory |
Operating parameters will be saved automatically |
|
Status when powered up |
The pump status when powered up can be set as stop or as the status before power loss |
|
Prime |
Fast filling or emptying at full speed |
|
Keypad lock function |
Keypad can be locked to prevent the misoperation. The delay time before lock is settable. |
|
Dimension(L×W× H) |
232×142×149(mm) |
|
Power supply |
AC 100V-240V/25W, 50/60Hz |
|
Operating temperature |
0℃～40℃ |
|
Relative humidity |
＜80% |
|
IP rating |
IP31 |
|
Weight |
2.38kg |
Compatible Pump Head and Tubing
|
Model |
Pump head |
Tubing |
Flow Rate Reference |
Weight |
|
L100-1S-2(05.02.42A) |
YZ1515x, YZII15 |
13# 14# 19# 16# 25# 17# 18# |
0.6 - 380 |
2.78 |
|
YZ2515x |
15# 24# |
16 - 270 |
||
|
YZII25 |
15# 24# 35# 36# |
16 - 500 |
||
|
FG15-13 |
13# 14# 19# 16# 25# 17# 18# |
0.5 - 430 |
2.66 |
|
|
FG25-13 |
15# 24# |
22 - 320 |
||
|
DMD15-13-B. |
2×13# 2×14# 2×19# 2×16# 2×25# |
2 - 375 |
2.81 |
|
|
BZ15-13-A |
14# |
3 - 22 |
2.69 |
|
|
BZ15-13-B |
16# |
8 - 80 |
||
|
BZ15-13-C |
25# |
16 - 150 |
||
|
BZ15-13-D |
17# |
27 - 270 |
||
|
BZ25-13-B |
24# |
27 - 250 |
||
|
DG15-24 |
16# 25# 17# |
8 - 300(Single channel) |
3.2 |
|
|
DG15-28 |
13# 14# ID≤3.17mm |
0.31 - 75(Single channel) |
3.05 |
|
|
DG-(1,2,4,6,8)6 Rollers |
ID≤3.17mm Wall Thickness0.8-1mm |
0.21 - 48(Single channel) |
2.58-3.01 |
|
|
DG-(1,2,4)10 Rollers |
0.15 - 32(Single channel) |
