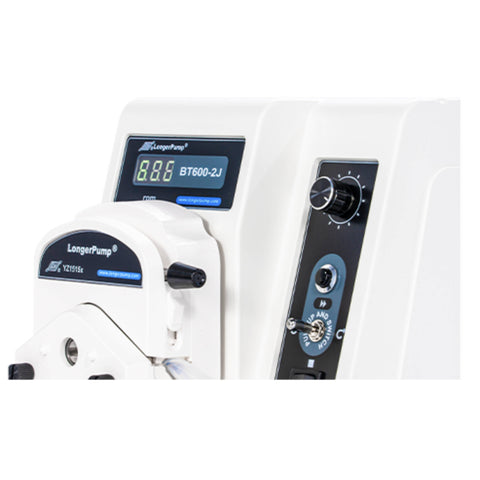

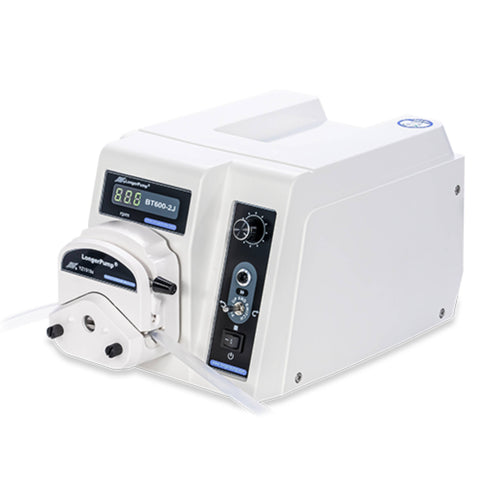

LONGER BT600-2J Mid-to-High-Flow Range Peristaltic Pump
SKU: BT600-2J_YZ1515X-A/C
LONGER BT600-2J Mid-to-High-Flow Range Peristaltic Pump
The pump delivers flow rates from 0.07 to 2200mL/min. The speed can be adjusted manually or automatically through external control interface. It can be equipped with FK-1C dispenser for filling function. Store the running parameter automatically. Easy to operate.
Product Features
- BT600-2J is widely used in laboratory.
- Acceptable pump heads are YZ1515x, YZ2515x, YZII15, YZII25 and DG15-24.
- The pump delivers flow rates from 0.07 to 3000ml/min.
- The pump could be controlled through rotate knob, footswitch, external control interface and RS485 communication interface.
- Store the running parameter automatically. Easy to operate and intuitive display.
- CE certification.
Product Parameters
|
Parameters |
BT600-2J |
|
Max Flow Rate (Single |
3000mL/min |
|
Speed Range |
1-600(rpm), CW/CCW |
|
Speed Resolution |
1 rpm |
|
Display |
3-digit LED display for current speed |
|
Work Mode |
Continuous mode |
|
Control Mode |
Keypad control; Footswitch control; External control; Communication control |
|
Calibration |
N/A |
|
External Control |
Control function: start/stop; running direction; speed |
|
Communication Control |
RS485 |
|
Dimensions(L x W x H) |
285×207×180mm |
|
Power Supply |
AC 90V-260V/100W 50/60Hz |
|
Operating |
0℃-40℃ |
|
Relative Humidity |
＜80% |
|
IP Rating |
IP31 |
|
Weight |
3.8Kg |
Technical Specifications
|
BT600-2J |
|
|
Speed |
1rpm-600rpm,CW/CCW |
|
Speed |
1rpm |
|
Control mode |
Control panel, external signal control and communication control |
|
Display |
3-digit LED display for current speed |
|
External control |
Start/stop, direction and speed control |
|
Communication Interface |
RS485 |
|
Power-off memory |
Return to previous status when powered on |
|
Prime |
For fast filling and emptying at full speed |
|
Dimension (LXWXH) |
285x207X180 (mm) |
|
Power supply |
AC 90V-260V/100W |
|
Operating temperature |
0 to 40℃ |
|
Relative humidity |
<80% |
|
IP rating |
IP31 |
|
Weight |
3.8Kg |
Compatible Pump Heads and Tubing
|
Model |
Product |
Pump Head |
Tubing |
Max Flow Rate |
Weight (kg) |
|
BT600-2J |
05.02.62A |
YZ1515x, |
13# 14# 19# 16# 25# 17 |
2200 |
4.2 |
|
YZ2515x |
15# 24# |
1600 |
4.2 |
||
|
YZII25 |
15# 24# 35# 36# |
3000 |
4.2 |
||
|
DG15-24 |
16# 25# 17# |
1800 (Single Channel) |
4.6 |
