LONGER BT100-1L Multi-channel Peristaltic Pump
SKU: BT100-1L_DG-4(6)
LONGER BT100-1L Multi-channel Peristaltic Pump
Multi-channels peristaltic pump BT100-1L is mainly used in laboratory, suitable for stacking multi pump head. The channels quantity is up to 24 when matchs DG series pump head. The pump delivers multi channels and smaller flow rate.
Product Features
- Multi-channels peristaltic pump BT100-1L is mainly used in laboratory, suitable for stacking multi pump head. The channels quantity is up to 24 when matchs DG series pump head. The pump delivers multi channels and smaller flow rate.
- Acceptable pump are DG15, DG-2/4/6/8/12/16/24(6rollers), DG-2/4/6/8/12/16/26(10rollers), 4*YZ1515x,4*YZII15,4*YZ2516X, 2*YZII25 and 2*DMD15-13.
- The flow range is from 0.002ml/min to 500ml/min.
- The pump could be controlled through control panel, footswitch, external control interface and RS485 communication interface.
- Store the running parameter automatically.
- CE certification.
Product Parameters
|
Parameters |
BT100-1L |
|
Max. flow rate(Single Channel) |
500mL/min |
|
Pump speed |
0.1rpm-100rpm, CW/CCW |
|
Speed resolution |
0.1rpm |
|

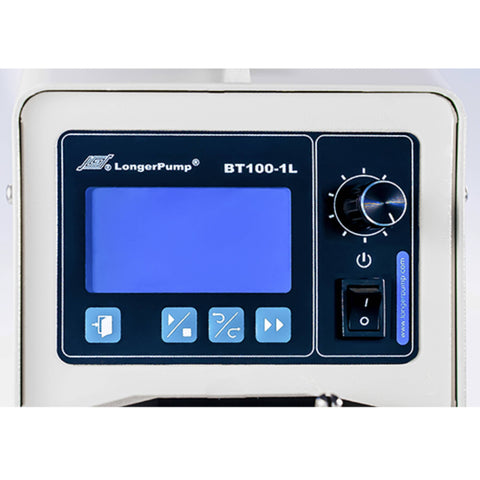

Display |
LCD for speed, flow rate and other parameters |
|
Work mode |
Continuous mode |
|
Control mode |
Keypad control; Footswitch control; External control; Communication control |
|
Calibration function |
Flow rate calibration |
|
External control |
Control function: start/stop, running direction, speed |
|
Communication control |
RS485 |
|
Dimensions (L x W x H) |
202×160×239(mm) |
|
Power supply |
AC 110V±10%/50W, AC 220V±10%/50W, 50/60Hz |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
relative humidity＜80% |
|
IP rating |
IP31 |
|
Weight |
5.3kg |
Technical Specifications
|
Speed |
0.1rpm-100rpm, CW/CCW |
|
Speed resolution |
0.1rpm |
|
Control mode |
Control panel, external signal control and |
|
Display |
128×32 graphic LCD for current running status |
|
Calibration function |
Improve flow rate accuracy |
|
External control |
Start/stop, direction and speed control (4-20mA, 0-5V, |
|
Communication interface |
RS485 |
|
Power-off memory |
Return to previous status when powered on |
|
Prime |
For fast filling and emptying at full speed |
|
Dimension (L×W×H) |
202×160×239(mm) |
|
Power supply |
AC 110V±10%/50W or AC220V±10%/50W optional |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
＜80% |
|
IP rating |
IP31 |
Compatible Pump Head and Tubing
|
Model |
Pump Head |
Tubing |
Max. Flow Rate |
Weight |
|
BT100-1L-A |
DG15-24 |
16# 25# 17# |
300(Single Channel) |
6.1 |
|
DG15-28 |
13# 14# Id ≤3.17 (mm) |
75(Single Channel) |
5.9 |
|
|
DG15-48 |
||||
|
DG-(2,4,6,8,12,16,24)6 Rollers |
Id≤3.17 (mm) |
48(Single Channel) |
5.7-8.6 |
|
|
DG-(2,4,6,8,12,16,24)10 Rollers |
32(Single Channel) |
|||
|
(1,2,3,4)× YZ1515x |
13# 14# 19# 16# 25# 17 |
380(Single Channel) |
5.7-6.9 |
|
|
(1,2,3,4)× YZII15 |
||||
|
(1,2,3,4)× YZ2515x |
15# 24# |
270(Single Channel) |
||
|
(1,2)× YZII25 |
15# 24# 35# 36# |
500(Single Channel) |
5.7-6.1 |
|
|
(1,2)× DMD15-13-B / DMD15-13-D |
13# 14# 19# 16# 25# |
350(Single Channel) |
5.7-6.1 |
