LONGER BT100-1F Peristaltic Filling Pump for Dispensing Function
SKU: BT100-1F_DG-1(6)

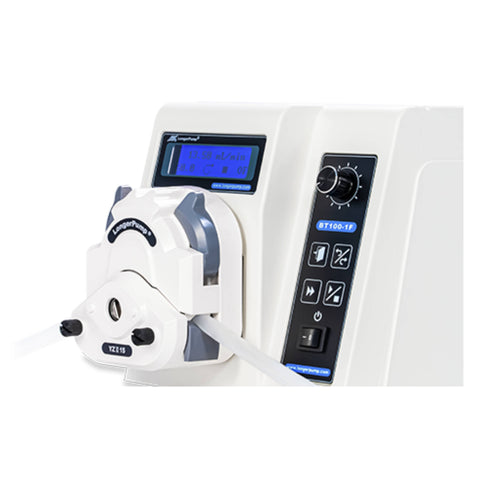

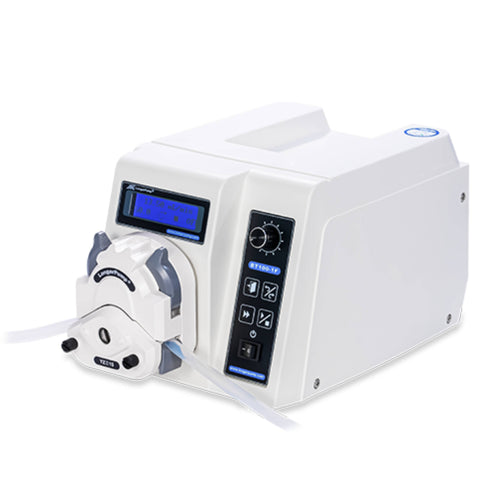

LONGER BT100-1F Peristaltic Filling Pump for Dispensing Function
Dispensing peristaltic pump BT100-1F is mainly used in laboratory. The pump could complete the dispensing function at desired volume. The flow rate calibration and dispensing calibration ensure the high accuracy and precision.
Product Features
- Dispensing peristaltic pump BT100-1F is mainly used in laboratory.
- The pump could complete the dispensing function at desired volume. The flow rate calibration and dispensing calibration ensure the high accuracy and precision.
- The back suction function could prevent the liquid leaking. The pump works in reverse for a given time when the pump stops running at dispensing mode. Easy to use and more convenient.
- Acceptable pump heads are YZ1515x, YZII15, YZ2515x, YZII25, DG-1/2/4 with 6 rollers, DG-1/2/4 with 10 rollers, DMD15 and DG15 series.
- The pump delivers flow rate from 0.02 to 500ml/min.
- The LCD could display the parameters and running state. The pump could be controlled through control panel, external control interface and RS485 communication interface.
- Store the running parameter automatically.
- CE certification.
Product Parameters
|
Parameters |
BT100-1F |
|
Max. flow rate(Single Channel) |
500ml/min |
|
Pump speed |
0.1 rpm - 100 rpm, CW/CCW |
|
Speed resolution |
0.1rpm |
|
Display |
LCD for speed, flow rate, volume and other parameters |
|
Work mode |
Continuous mode; Multi-dispensing mode |
|
Control mode |
Keypad control; Footswitch control; External control; Communication control |
|
Calibration function |
Flow rate calibration; Volume calibration |
|
External control |
Control function: start/stop, running direction, speed; Pump status output: run/stop, running direction, speed |
|
Communication control |
RS485 |
|
Dimensions (L x W x H) |
285×207×180(mm) |
|
Power supply |
AC 90V-260V/40W，50/60Hz |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
relative humidity＜80% |
|
IP rating |
IP31 |
|
Weight |
3.8kg |
Technical Specifications
|
Speed |
0.1rpm-100rpm, CW/CCW |
|
Speed resolution |
0.1rpm |
|
Control mode |
Control panel, external signal control and |
|
Display |
LCD for running status |
|
Work mode |
Flowrate mode and dispensing mode |
|
Flowrate calibration |
Improve flow rate accuracy |
|
Dispensing volume |
0.01mL-9.99L |
|
Dispensing calibration |
Calibrate dispensing volume to improve accuracy |
|
Copy number |
1 to 9999, “0”means unlimited cycle |
|
Pause time |
0.1s-99.9min, resolution is 0.1s |
|
Back suction time |
0s-99.9s, resolution is 0.1s |
|
External control |
Start/stop, direction and speed control (4-20mA, 0-5V, |
|
Speed output |
10Hz-10kHz corresponding to 0.1-100rpm |
|
Start/stop output |
OC gate signal |
|
Direction output |
OC gate signal |
|
Communication interface |
RS485 |
|
Power-off memory |
Return to previous status when powered on |
|
Prime |
For fast filling and emptying at full speed |
|
Dimension (L×W×H) |
285×207×180（mm） |
|
Power supply |
AC 90V-260V/40W |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
＜80% |
|
IP rating |
IP31 |
|
Weight |
3.8kg |
Compatible Pump Head and Tubing
|
Model |
Pump Head |
Tubing |
Max. Flow Rate(mL/ |
Weight |
|
BT100-1F |
YZ1515x, YZII15 |
13# 14# 19# 16# 25# 17# |
380 |
4.2 |
|
YZ2515x |
15# 24# |
270 |
||
|
YZII25 |
15# 24# 35# 36# |
500 |
||
|
DG-(1、2、4) 6 Rollers |
Id≤3.17 (mm) |
48 |
4-4.3 |
|
|
DG-(1、2、4) 10 Rollers |
32 |
|||
|
DMD15-13-B, DMD15-13-D |
13# 14# 19# 16# 25# |
350 |
4.2 |
|
|
DG15-24 |
16# 25# 17# |
300（Single Channel） |
4.6 |
|
|
DG15-28 |
13# 14# Id ≤3.17 (mm) |
75（Single Channel） |
4.5 |
