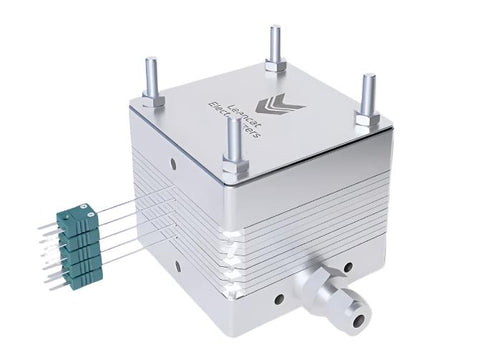

LEANCAT Laboratory Three-Unit Electrolyzer Testing Hardware for 25 cm² Active Area Cell
SKU: LCWE-labstack-3
LEANCAT Laboratory Three-Unit Electrolyzer Testing Hardware for 25 cm² Active Area Cell
Buy LEANCAT products from MSE Supplies at the best value.
Overview
- Test hardware for 3 cells testing
- Testing up to 3 cells at the same time.
- Suitable for PEM or AEM electrolyzers
- Possibility to pressurize up to 50 bar
- Simple assembly and durable construction
Applications
Research and development of fuel cells and electrolysers requires many experiments to be carried out under various conditions. Leancat Electrolyzers laboratory stacks offer repeatable and well-controlled conditions as well as high durability thanks to its robust and clean design.
Specifications
| Number of cells | 3 |
| Operating pressure hydrogen | up to 50 bar(g) |
| Max. temperature | up to 180°C |
| Gas connection type | G 1/4“ |
| Material of bipolar plate | Titanium Grade 2 |
| Thickness of bipolar plates | 3 mm |
| Active area | 25 cm² |
| Material of gasket | Silicone |
| Base and upper plates material | Stainless steel |
| Operating pressure oxygen | up to 50 bar(g) |
| Temperature sensors | 1 mm K-type thermocouples included |
| Material of current collectors | Stainless steel |
| Flow field | Serpentine |
| Type of gasket | Flat |
| Thickness of gasket | 1,5 mm |
| CVM connectors | Faston 2.8 mm |
MSE Supplies offers a variant of water electrolyzer. Please contact us for more information.
