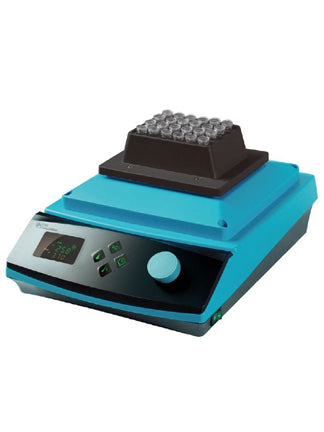

Lab Companion Heating Shaker (Thermoshaker)
Lab Companion Heating Shaker (Thermoshaker)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Heating Shaker, also known as a Thermoshaker, from Jeio Tech. It has interval mix function in program mode can be properly set according to user's experimental conditions.
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Microprocessor PID control ensuring consistent shaking motion and precision accuracy.
- Wide speed range from 150 to 1500 rpm (block dependent)
- Automatic temperature calibration.
- Bright VFD display with responsive touch buttons.
- Advanced dual wait on/off timer modes. user can set timer to starts immediately after the timer setting or only after reaching the set temp.
- Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion-resistant anodized aluminum blocks.
- Over-current protection.
Accessories:
-
0.5 ml Tube block with block cover
-
1.5 / 2.0 ml Tube block with block cover
-
50 ml Tube block with block cover
- 0.2 ml Tube block with block cover
- 15 ml Tube block with block cover
- Φ12 mm Tube block with block cover
- Φ13 mm Tube block with block cover
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
|
SKU# |
AAHJ4013U |
||
|
Electrical requirements (120V, 60Hz) |
3.4A |
||
|
Dimension (WxDxH) |
Body (inch) |
9.8 x 12.8 x 4.7 |
|
|
Net weight (lbs) |
18.3 |
||
|
Control |
PID feedback control |
||
|
Display |
VFD (0.1℃ resolution) |
||
|
Temperature |
Range (℃/℉) |
Amb. +5 to 100 / 41 to 212 |
|
|
Fluctuation at 80℃ (±℃/℉) |
0.3 / 0.9 |
||
|
Variation at 80℃ (±℃/℉) |
0.7 / 0.27 |
||
|
Heating power (W) |
360 |
||
|
Safety |
Over temp. |
Heating plate |
|
|
PCB |
|||
|
Over current |
Current limit protection |
||
|
Shaking system (WxDxH) |
Speed range (rpm) |
96-well tube block |
150 to 1500 |
|
0.5mL tube block |
150 to 1000 |
||
|
1.5mL tube block |
150 to 1000 |
||
|
15mL tube block |
150 to 900 |
||
|
Ø12 tube block |
150 to 850 |
||
|
Ø13 tube block |
150 to 850 |
||
|
50mL tube block |
150 to 800 |
||
|
Orbit size (inch, dia.) |
2 / 0.08 |
||
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
